LOC
AVER

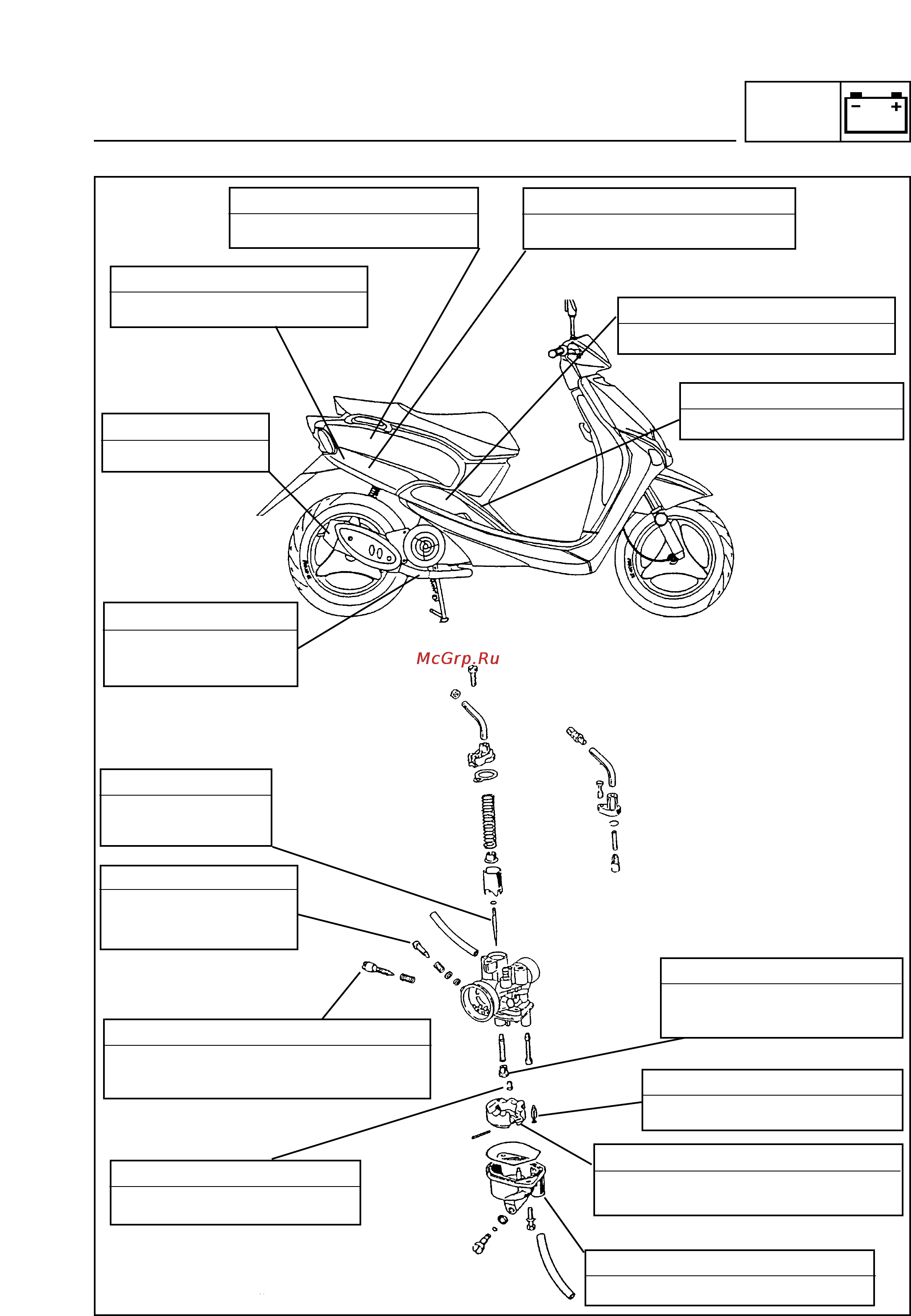

TROUBLE SHOOTING
8-3
INLET AND EXHAUST SYSTEM
CARBURETTOR JOINT
• Air leaks
MAIN JET
• Incorrect size
• Obstructed (High speed)
MUFFLER
• Obstructed
EXHAUST PIPE
• Cracked or broken
• Carbon deposits
NEEDLE
• Badly adjusted
(Average speed)
PILOT JET
• Obstructed (Low range)
FLOAT
• Incorrect adjustment of fuel level
• Broken
FUEL TANK CAP
• Obstructed
FUEL PIPE
• Obstructed
AIR FILTER ELEMENT
• Dirty or obstructed
FUEL COCK
• Obstructed
AIR SCREW
• Badly adjusted
(Idling and starting)
ACCELERATOR STOPPING SCREW
• Badly adjusted
(Idling and starting)
BOWL
• Accumulated dust and/or water
FLOAT VALVE
• Worn
DAMP TYPE
(CARBURETTOR)
