CHAS
FRONT BRAKE
6-7

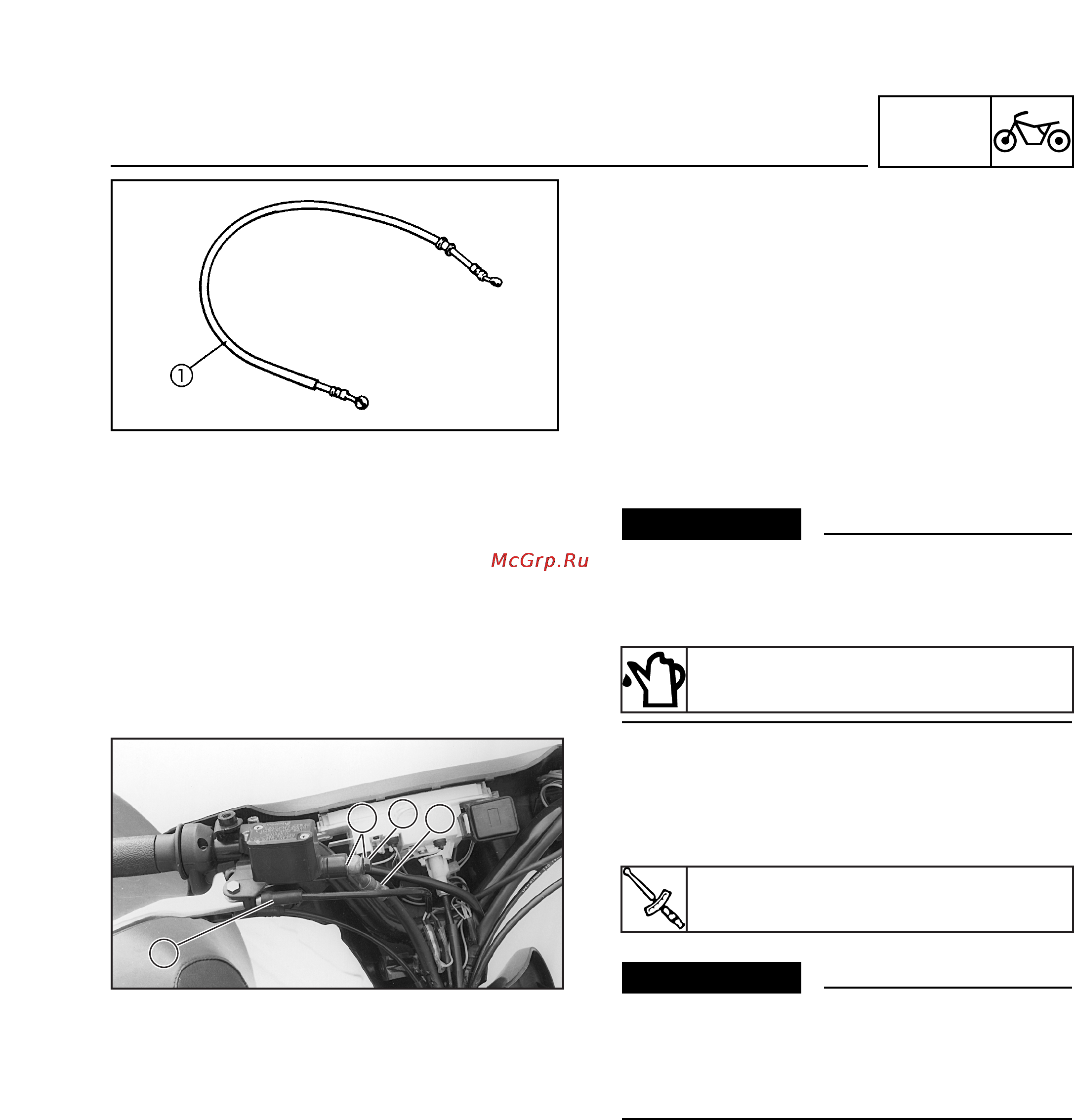

CHECKING THE BRAKE HOSE
1. Check:
• brake hoses
cracks/damage/wear
Replace.
BRAKE HOSE ASSEMBLY
ss
WARNING
• All internal parts should be cleaned only
in new brake fluid.
• Internal parts should be lubricated with
brake fluid when installed.
1. Install:
• Brake hose
• Copper washers
• Assembly bolts
• Brake switch
ss
WARNING
• The correct positioning of the hose is
essential to ensure the safe operation of
the scooter. See “CABLE ROUTING”.
• Always use new copper washers.
2. Ensure that the brake hose does not touch
other parts (accelerator cable, installation,
cables, etc.) by turning the handlebar to the
left and right. If it does touch, correct this.
1
2
3
4
Recommended brake fluid
DOT 4
Assembly bolt:
2.3 m • kg
