Yamaha NEOS 50 YN50 (2002) [58/161] Disassembly the engine

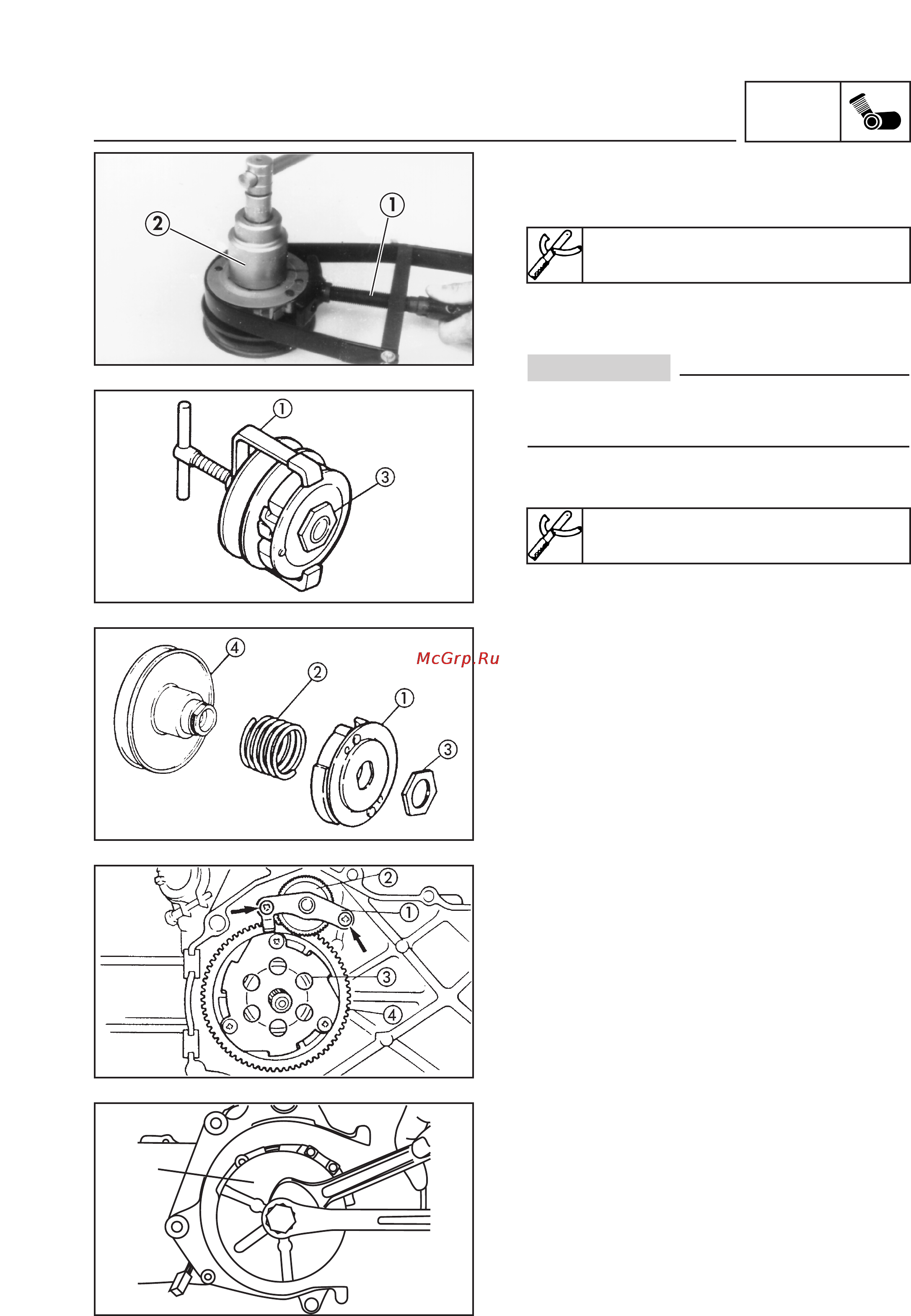

![Yamaha NEOS 50 YN50 (2002) [58/161] Disassembly the engine](/views2/1121427/page58/bg3a.png)
ENG
DISASSEMBLY THE ENGINE
4-7
3. Apply:
• Pulley wheel clamp
• Nut spanner (41MM)
4. Loosen:
• Clutch positioning nut
ATTENTION:
Do not remove the clutch positioning nut
yet.
5. Apply:
• Clutch spring compressor
6. Remove:
• Clutch positioning nut
7. Remove:
• Clutch assembly
• Clutch spring
• Spring seat
• Guide pins
• Secondary sliding pulley wheel
STARTER SYSTEM
1. Remove:
• Plate (intermediate gearing)
• Intermediate gearing
• Starter clutch assembly
• Washer
• Starter wheel gearing
2. Remove:
• Bushing
• Bearing
• Washer
• Starter motor
Pulley wheel clamp:
90890-01701
Clutch spring compressor:
90890-01337
