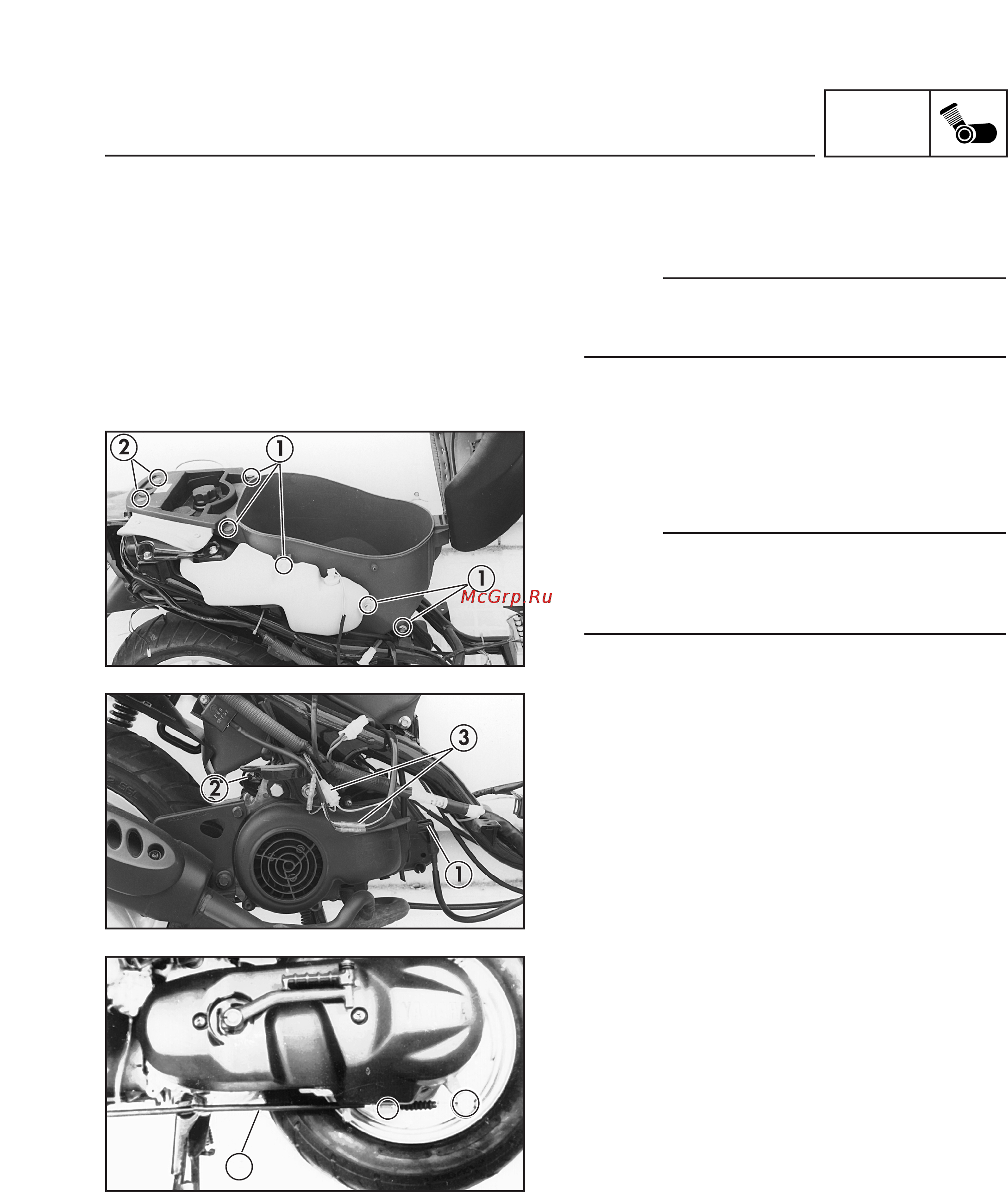

ENGINE REMOVAL
4-2
CABLES AND PIPES
1. Remove:
• Oil pipe from side of oil pump.
NOTE:
Position oil pipe so that the oil does not spill
out.
2. Remove:
• Bolts (trunk)
• Overflow bowl rivets
NOTE:
To remove the overflow bowl, take off the fuel
and oil caps and replace them immediately
after removing the bowl.
3. Disconnect:
• Battery cable
• Starter motor cable
• Magnetic flywheel cable
• Spark plug pipe
4. Remove:
• Rear brake cable
