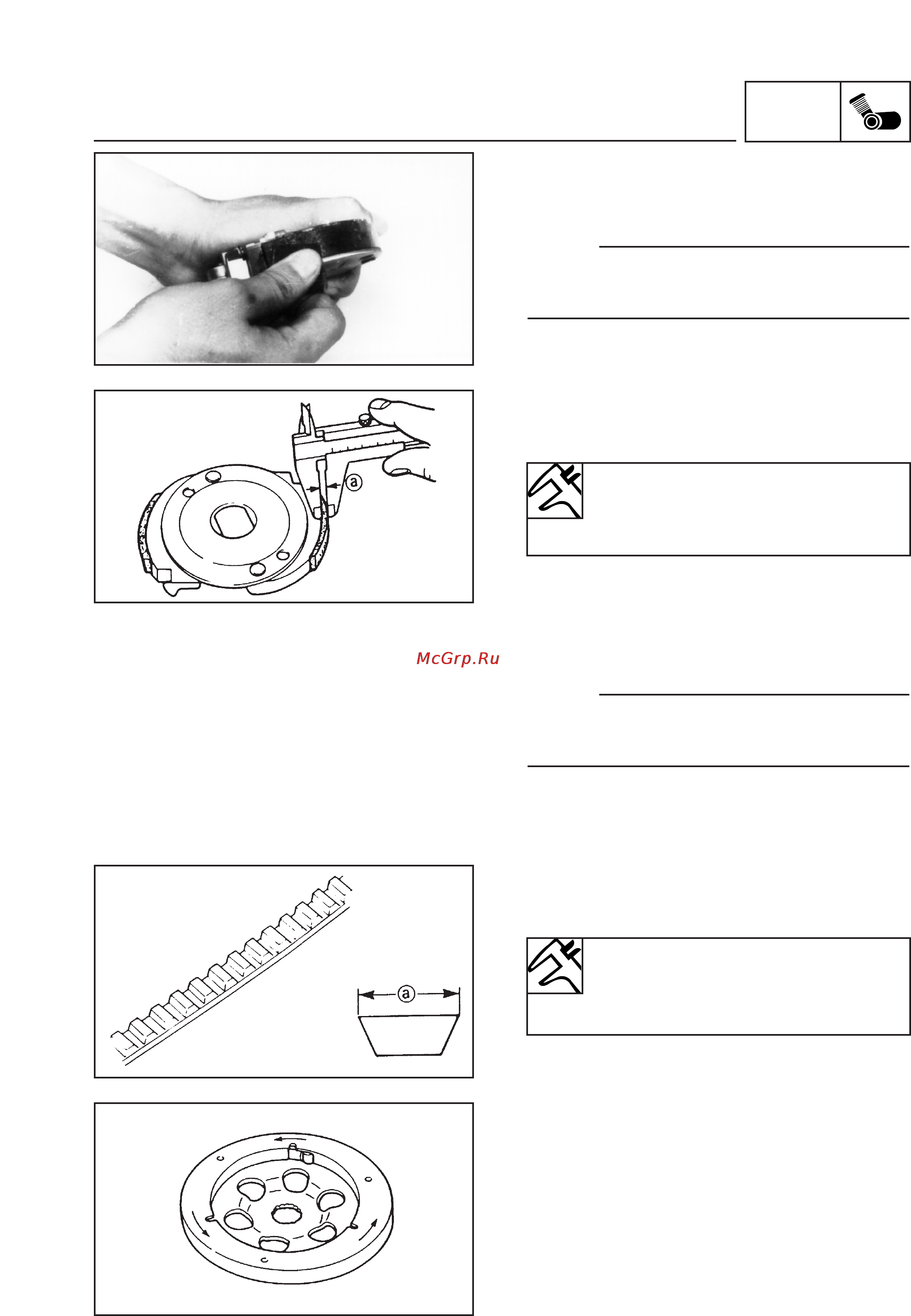

INSPECTION AND REPAIR
4-19
6. Inspect:
• Clutch shoes shiny parts
Polish with
sand paper.
NOTE:
After using sand paper, clean the polished
particles with a cloth.
7. Measure:
• Thickness of clutch shoe
a
Outside specified value
Change
TRAPEZOIDAL BELT
1. Inspect:
• Trapezoidal belt
Cracks/Wear
Change
NOTE:
Replace the trapezoidal belt if it is dirty with
oil or grease.
2. Measure:
• Width of trapezoidal belt
a
Outside specified value
Change
STARTER CLUTCH AND GEARS
1. Inspect:
• Starter clutch Press the conical pin in the
direction of the arrow.
Rough operation
Change the starter
clutch assembly
Width of trapezoidal belt
16.5 mm
<Wear limit>
15.7 mm
Thickness of clutch shoe
2.0 mm
<Wear limit>
1.0 mm
