INSPECTION AND REPAIR
4-18
SECONDARY PULLEY WHEEL

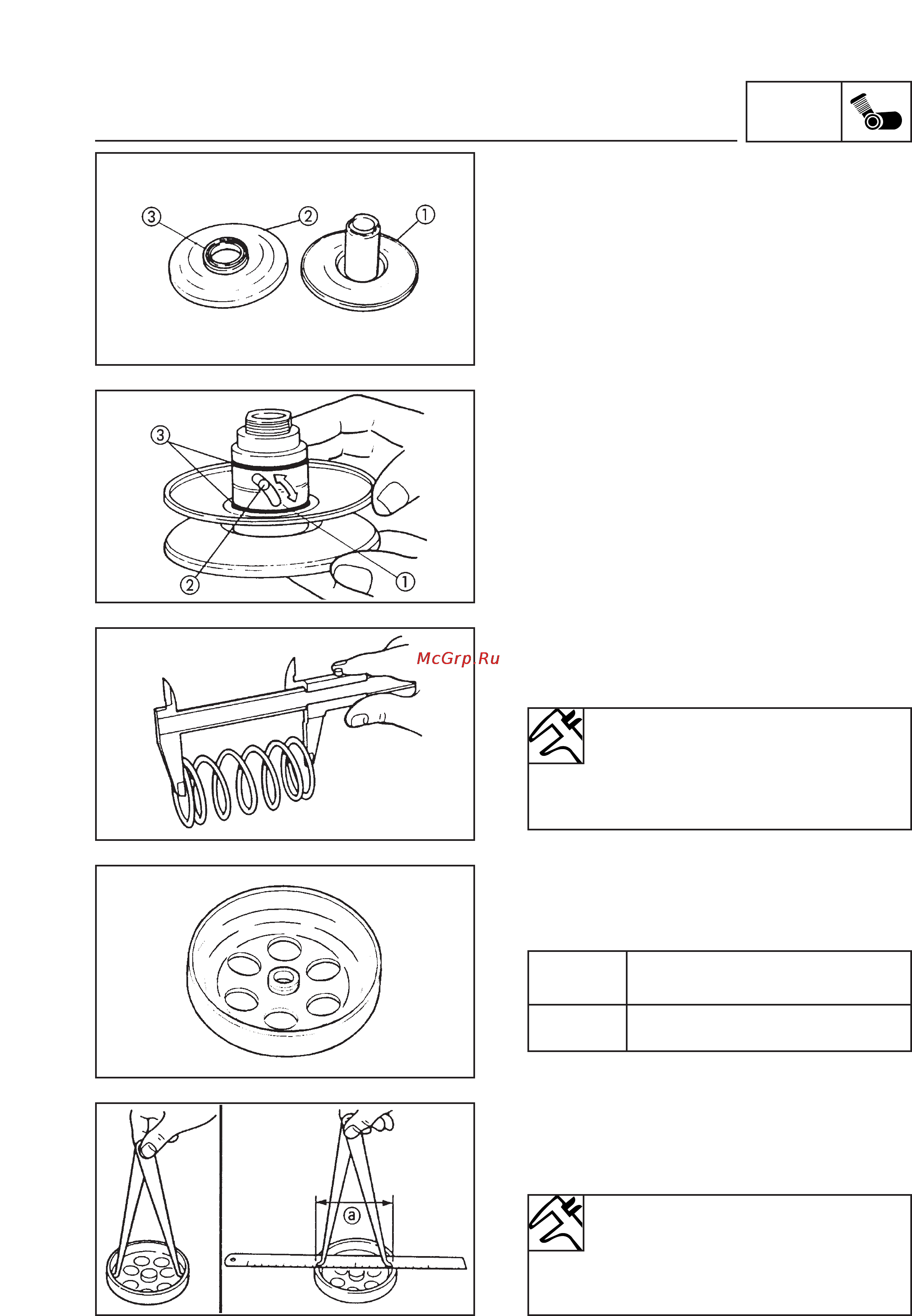

1. Inspect:
• Secondary fixed pulley wheel
• Secondary sliding pulley wheel
Striping/Cracks/Damage
Change set.
• Oil seal
Damage
Change.
2. Inspect:
• Turning cam groove
• Guide pin
Wear/Damage
Change set.
• O-ring
Damaged
Change.
3. Measure:
• Free length of variator spring.
Outside specified value
Change
4. Inspect:
• Inner surface of the clutch hub
Oil/Striping
Clean
5. Measure:
• Internal diameter of the clutch hub
a
Outside specified value
Change
Free length of secondary pulley
wheel
109.6 mm
<Limit>
90.4 mm
Oil
Use a cloth dampened with
dissolvent
Striping
Use sand paper (polish lightly
and uniformly)
Internal diameter of clutch hub
105.0 mm
<Wear limit>
105.4 mm
