Yamaha NEOS 50 YN50 (2002) [131/161] Electrical system
![Yamaha NEOS 50 YN50 (2002) [131/161] Electrical system](/views2/1121427/page131/bg83.png)
ELEC

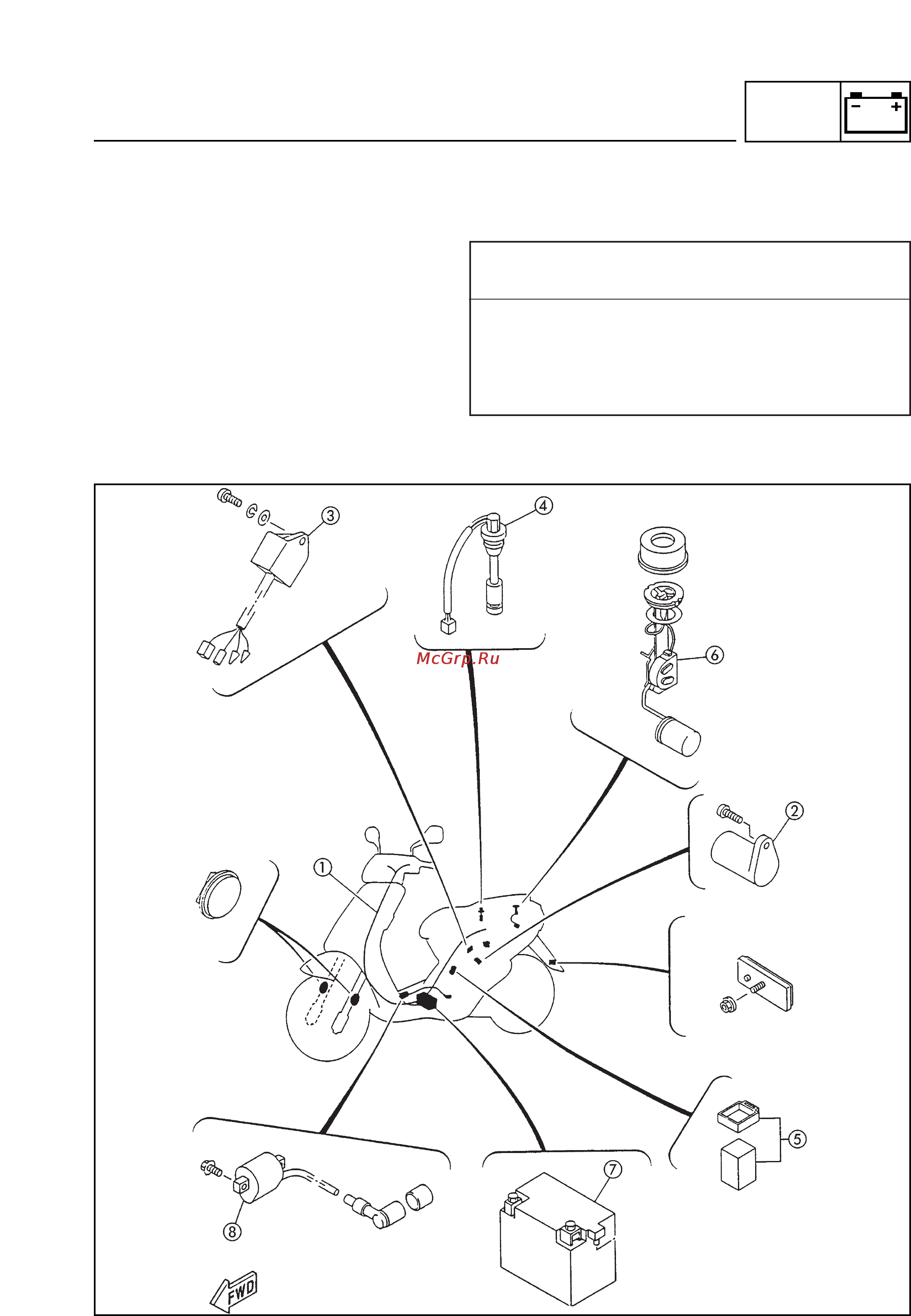

ELECTRICAL COMPONENTS
7-1
Wire harness
Starter motor
CDI unit
Engine oil level gauge
Starter relay
Fuel level gauge
Battery
Ignition coil
ELECTRICAL SYSTEM
ELECTRICAL COMPONENTS
IGNITION COIL:
PRIMARY COIL RESISTANCE:
0.56 ~ 0.84 Ω at 20 °C (68 °F)
SECONDARY COIL RESISTANCE:
5.7 ~ 8.5 Ω at 20 °C (68 °F)
BATTERY
SPECIFIC GRAVITY: 1,280
