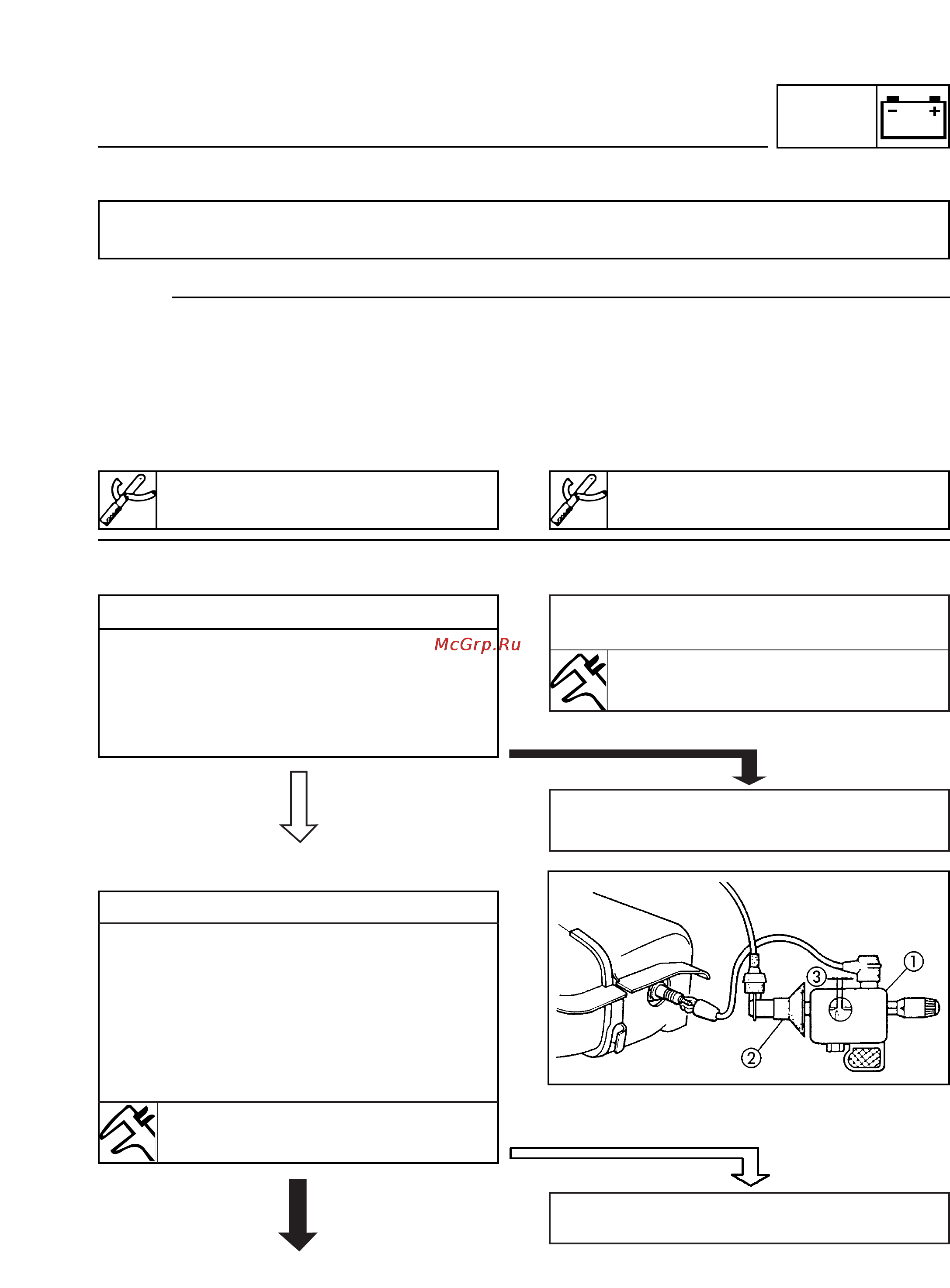

ELEC
IGNITION AND STARTER SYSTEM
7-5
TROUBLESHOOTING
NOTE:
• Remove the following parts before carrying out the repair of fault .
1) Side covers (right and left)
2) Rear cover
3) Footrest panel
• Use the following special tools to repair faults.
IF THE IGNITION SYSTEM IS NOT OPERATING
(NO SPARK OR INTERMITTENT SPARK)
Ignition tester:
90890-06754
Pocket tester:
90890-03112
1. Spark plug
• Check spark plug conditions.
• Check type of spark plug.
• Check distance between electrodes .
Consult chapter 3 “INSPECTION OF
SPARK PLUG”
CORRECT
2. Gap of the ignition spark plug
• Disconnect the spark plug pipe from the
spark plug.
• Connect the ignition tester as shown.
Spark plug pipe
Spark gap
• Check spark gap
• Start the engine and increase the spark
jump until ignition fails.
Minimum spark gap:
6.0 mm
OUTSIDE
SPECIFIED
VALUE OR
NO SPARK
INCORRECT
Defective spark plug, change or adjust the
distance between the electrodes
Standard spark plug
BR7HS (NGK)
Distance between electrodes
0.6 ~ 0.7 mm
SATISFIES THE SPECIFIED VALUE
The ignition system is in good condition.
