ENG
ASSEMBLY AND ADJUSTMENT OF ENGINE
4-21
ASSEMBLY AND ADJUSTMENT OF ENGINE

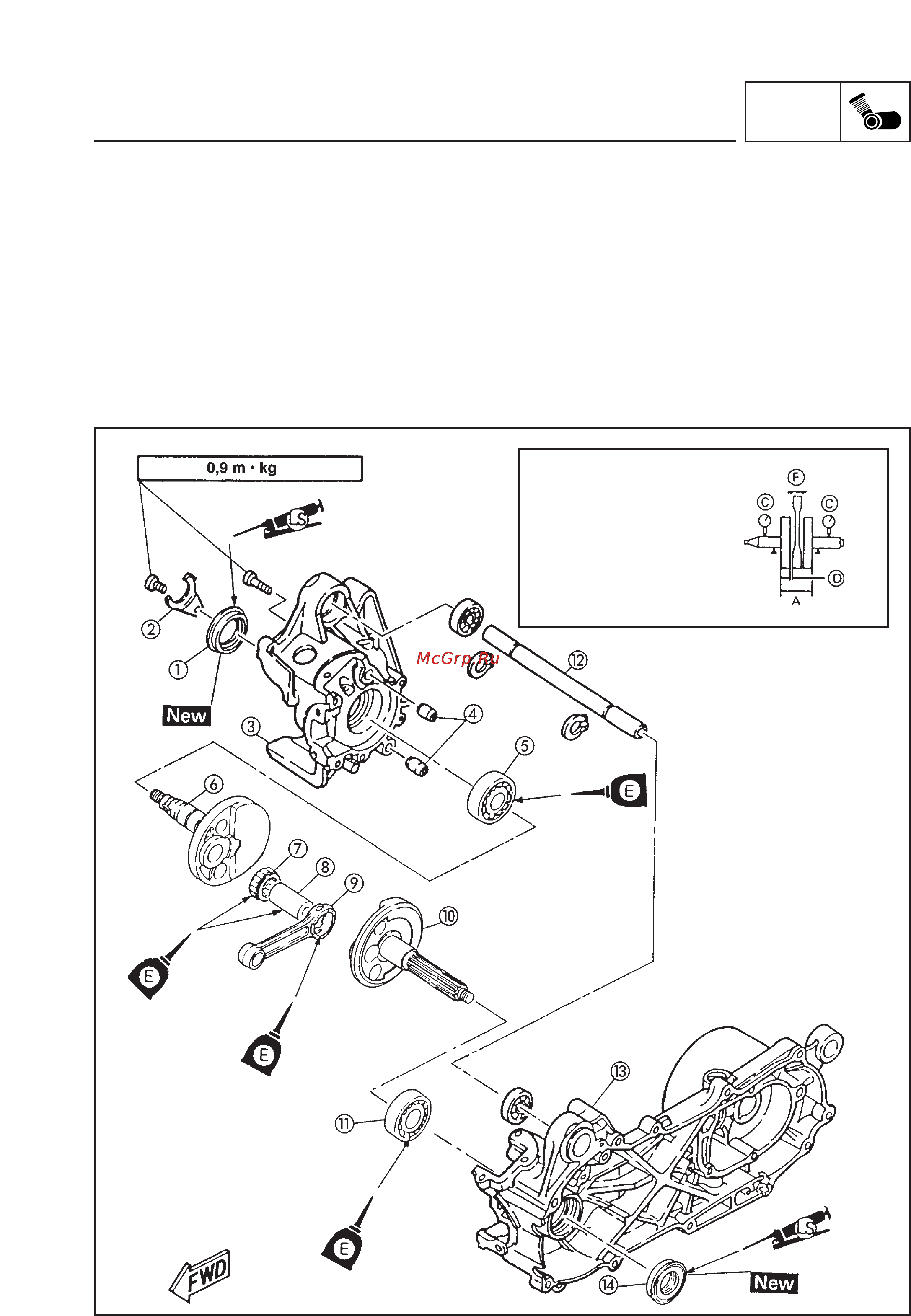

CRANKSHAFT AND CRAKCASE
Oil seal
Oil seal catch
Crankcase (right)
Centring device
Bearing
Crankcase (right)
Bearing
Crankshaft pin
Connecting rod
10 Crankcase (left)
11 Bearing
12
Engine mounting spacer
13 Crankcase (left)
14 Oil seal
CRANKSHAFT
A: 37.90 ~ 37.95 mm
C: 0.03 mm
D: 0.2 ~ 0.5 mm
F: <Limit> 1.0 mm
0.4 ~ 0.8 mm
