Yamaha NEOS 50 YN50 (2002) [75/161] Assembly and adjustment of engine
![Yamaha NEOS 50 YN50 (2002) [75/161] Assembly and adjustment of engine](/views2/1121427/page75/bg4b.png)
MOT

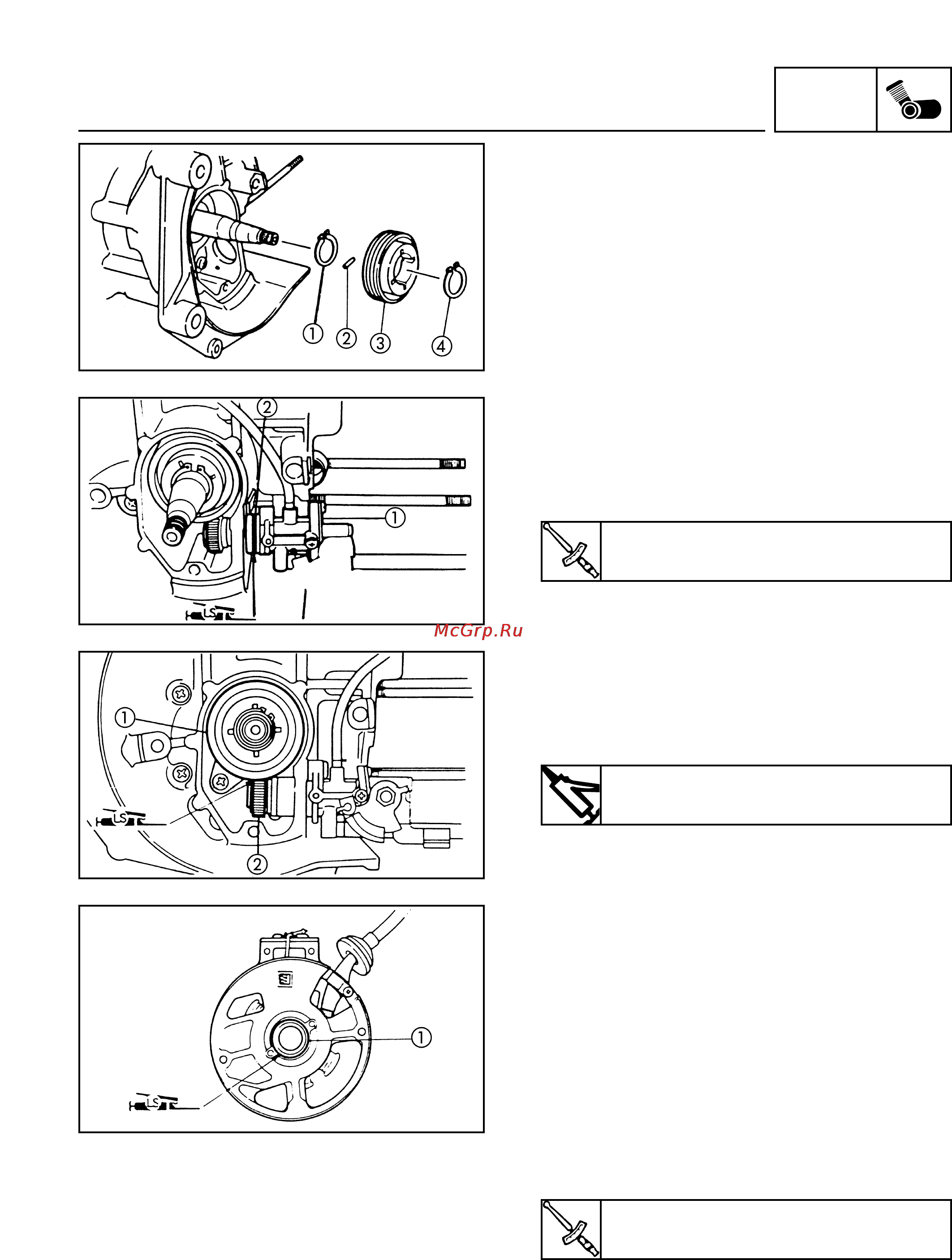

ASSEMBLY AND ADJUSTMENT OF ENGINE
4-24
AUTOLUBRICATION PUMP
1. Install:
• Elastic circlip
• Pin
• Pump drive gear
• Elastic circlip
2. Apply:
• Grease with lithium soap base
(on the o-ring )
3. Install:
• Autolubrication pump
4. Apply:
• Grease with lithium soap base
(on the autolubrication pump gear , )
FLYWHEEL MAGNETO
1. Install:
• Seal
2. Apply:
• Grease with lithium soap base
(on the oil reten )
3. Pass the wheel cable through the crankca-
se
orifice.
4. Install:
• Stator assembly
5. Install:
• Key
• Magnetic wheel
• Flat washer
• Nut
Screw (autolubrication pump)
0.4 m • kg
15 cc
Screw (stator assembly)
0.8 m • kg
