Yamaha NEOS 50 YN50 (2002) [79/161] Assembly and adjustment of engine
![Yamaha NEOS 50 YN50 (2002) [79/161] Assembly and adjustment of engine](/views2/1121427/page79/bg4f.png)
MOT

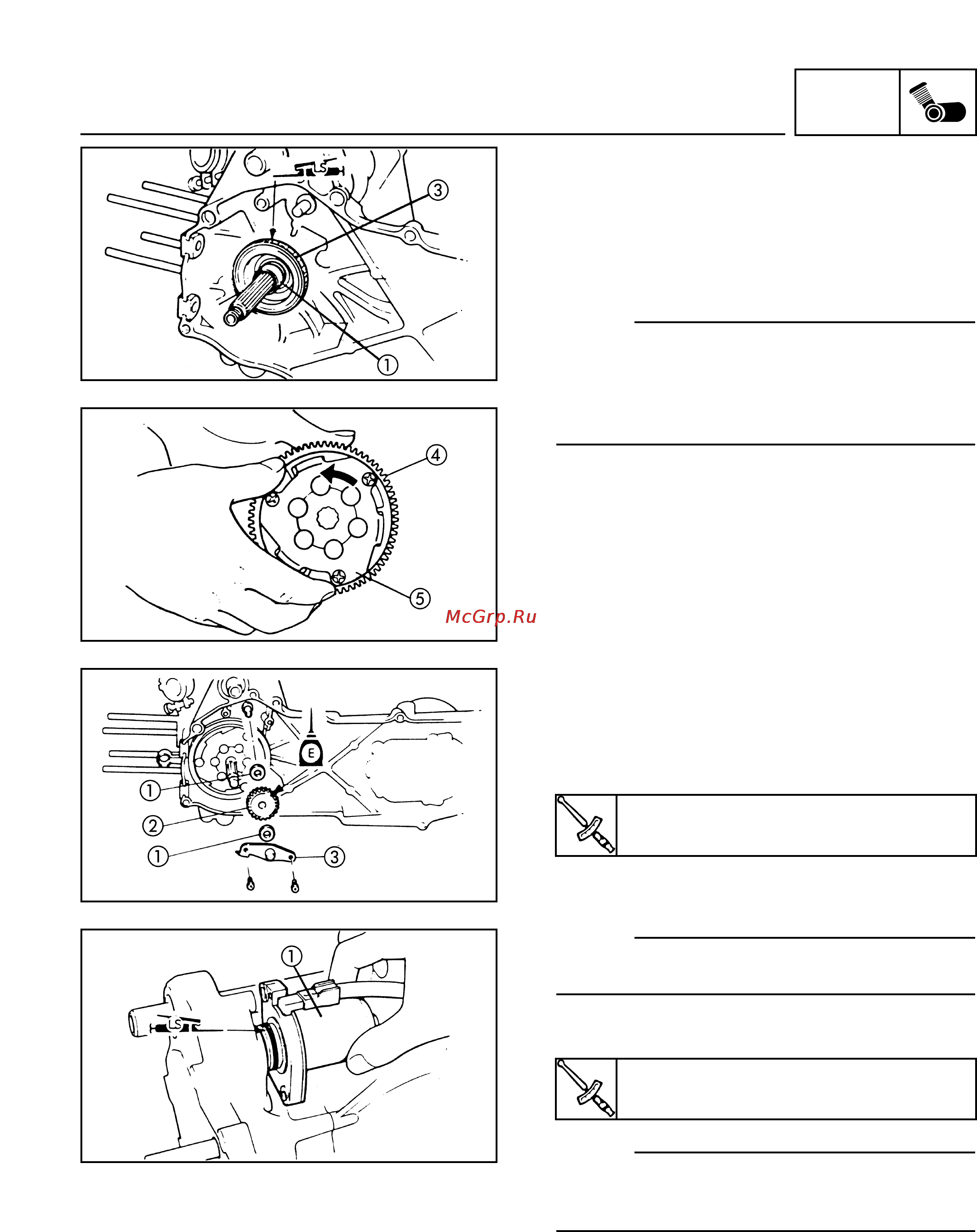

ASSEMBLY AND ADJUSTMENT OF ENGINE
4-28
STARTER SYSTEM
1. Install:
• Bushing
• Bearing
• Starter wheel gear
• Starter clutch
NOTE:
• Apply grease with a lithium soap base on
the bearing .
• Apply molybdenum disulphide oil on the pin
(starter clutch) .
2. Install:
• Flat washer
• Intermediate gear
• Flat washer
• Plate (intermediate gear)
NOTE:
Apply engine oil on the intermediate gear .
3. Install:
• Starter motor
NOTE:
Apply grease with a lithium soap base on the
o-ring of the starter motor.
Screw (intermediate gear plate)
0,8 m • kg
Starter motor bolts
1,3 m • kg
