Yamaha NEOS 50 YN50 (2002) [90/161] Assembly and adjustment of engine
![Yamaha NEOS 50 YN50 (2002) [90/161] Assembly and adjustment of engine](/views2/1121427/page90/bg5a.png)
MOT
ASSEMBLY AND ADJUSTMENT OF ENGINE
4-39

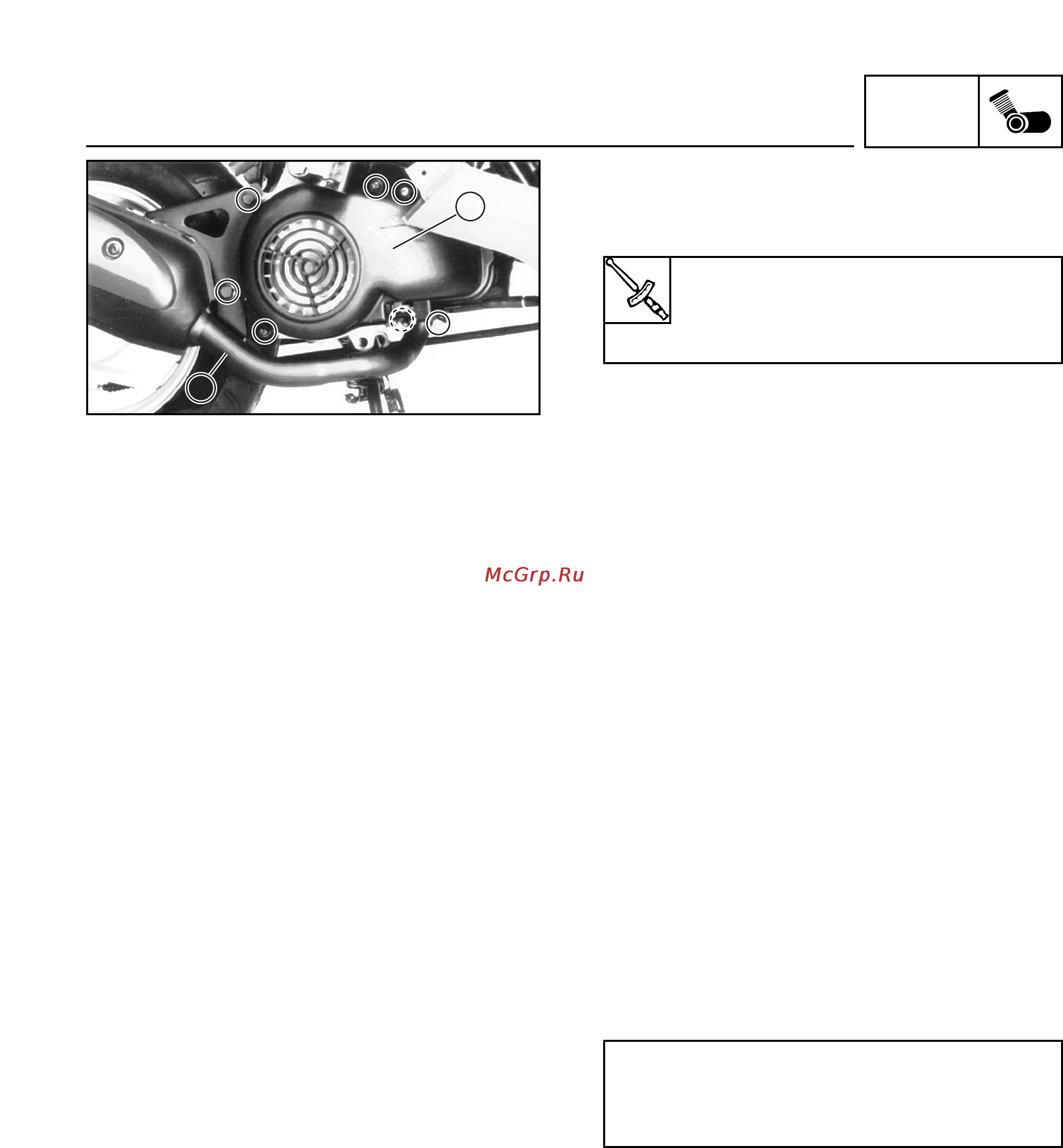

6. Install:
• Silencer
• Fan cover
7. Apply:
• Transmission oil.
See chapter 3 section - “CHANGING
TRANSMISSION OIL”.
8. Adjust:
• Free play of brake levers.
See chapter 3, section – “ADJUSTMENT
OF FREE PLAY OF FRONT/REAR
BRAKE LEVER”.
• Free play of accelerator cable See sec-
tion “ADJUSTMENT OF FREE PLAY OF
ACCELERATOR CABLE”.
9. Install:
• Helmet carrier
• Overflow bowl
• Footrest
• Rear bodywork
• Rear cover
Follow the reverse process to the removal
procedure.
10. Install:
• Battery in its footrest housing
11. Connect:
• Battery cables
12. Place:
• Front cover
Bolt (silencer)
2.6 m • kg
Bolt (exhaust pipe)
0.9 m • kg
1
2
Positive cable + to positive terminal +
of battery
Negative cable – to negative terminal –
of battery
