INSPECTION AND REPAIR
4-15
4. Inspect:
Bearing (piston pin)
Pitting/Damage
Change

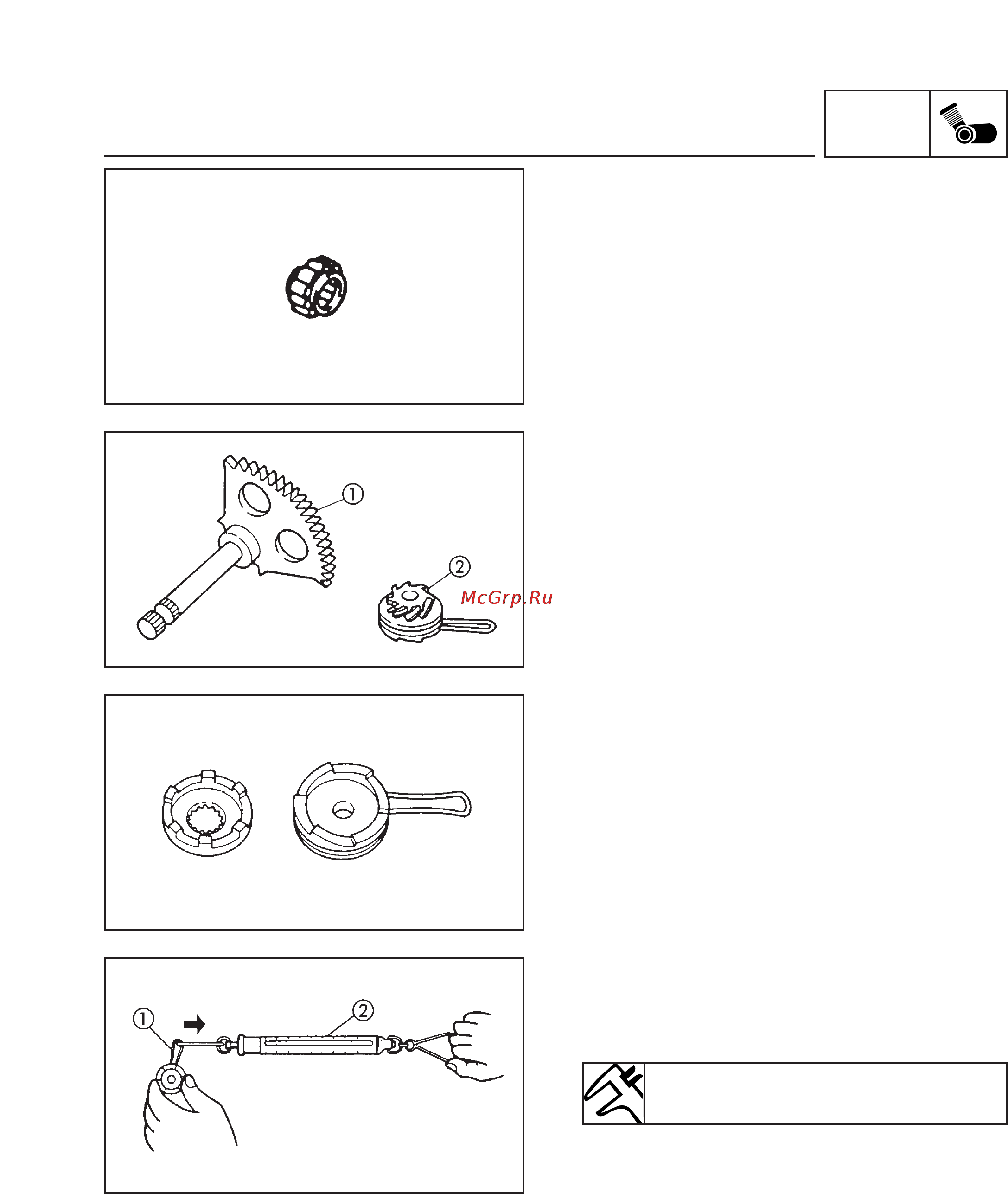

KICKSTART
1. Inspect:
• Pedal gear teeth
• Pedal pinion gear teeth
Burrs/Spalling/Non-uniformity/Wear
Change
2. Inspect:
• Locking bolt(pedal pinion gear and one
way clutch)
Rounded edges/Wear
Change
3. Measure:
• Spring tension (pedal pinion gear)
Outside specified value
Change
Use a dynamometer
Standard tension
150 ~ 250 gr
