Yamaha NEOS 50 YN50 (2002) [38/161] Insp adj
![Yamaha NEOS 50 YN50 (2002) [38/161] Insp adj](/views2/1121427/page38/bg26.png)
INSP
ADJ

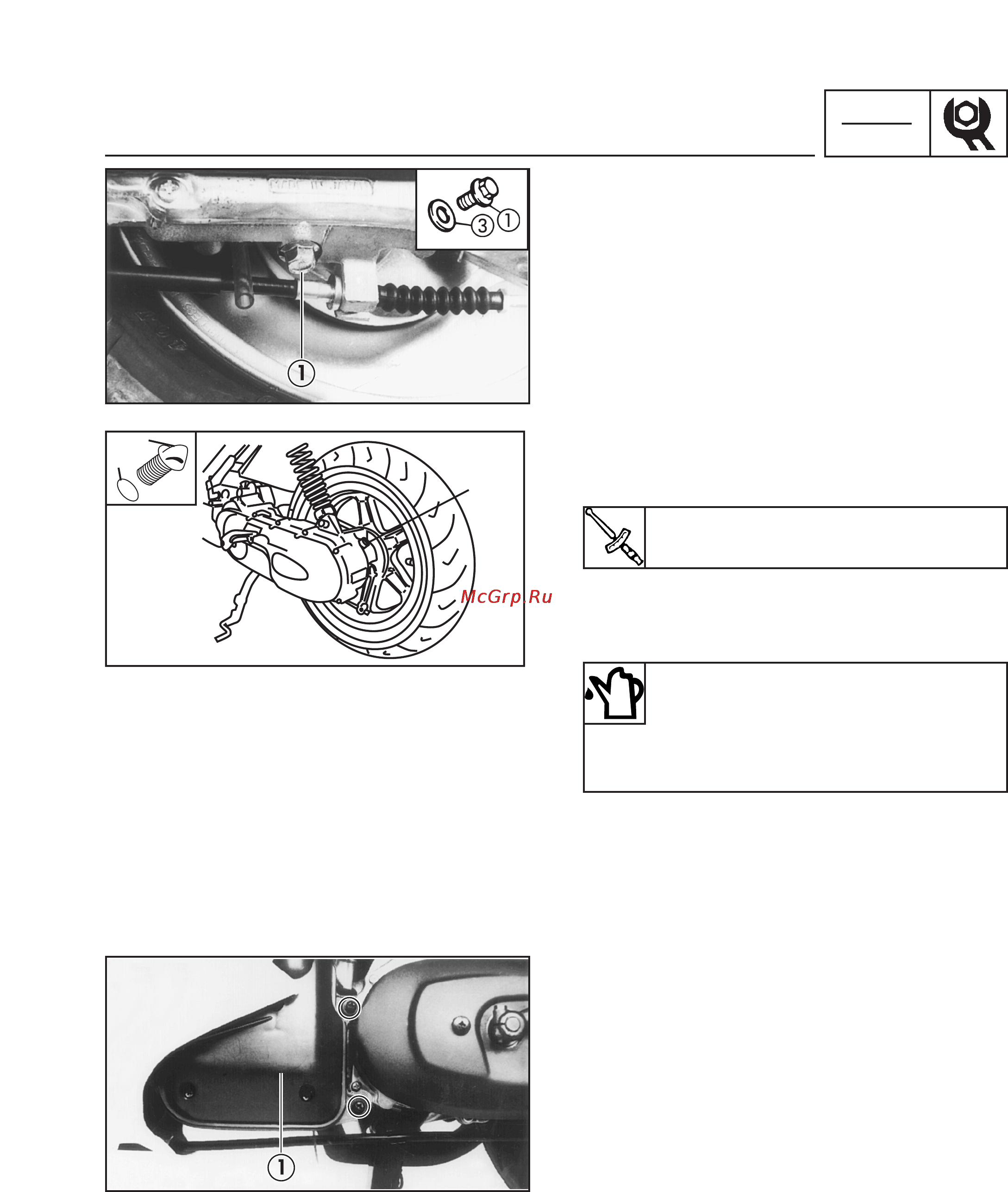

CHANGE OF TRANSMISSION OIL /
CLEANING AIR FILTER
3-10
CHANGE OF TRANSMISSION OIL
1. Remove:
• Drainage bolt
Drain the transmission oil.
• Oil refill cap
2. Inspect:
• Gasket (drainage screw)
• O-ring (refill cap)
Damaged
Change
3. Install:
• Gasket
• Drainage screw
4. Fill:
• Transmission Case
CLEANING AIR FILTER
Carburettor side
1. Remove:
• Air filter box assembly
Drainage screw
18 Nm (1.8 m • kg)
Transmission oil
SE engine oil type SAE 30 or GL
gear oil
Caacity:
0.11 L
4
2
