Yamaha NEOS 50 YN50 (2002) [86/161] Assembly and adjustment of engine
![Yamaha NEOS 50 YN50 (2002) [86/161] Assembly and adjustment of engine](/views2/1121427/page86/bg56.png)
MOT

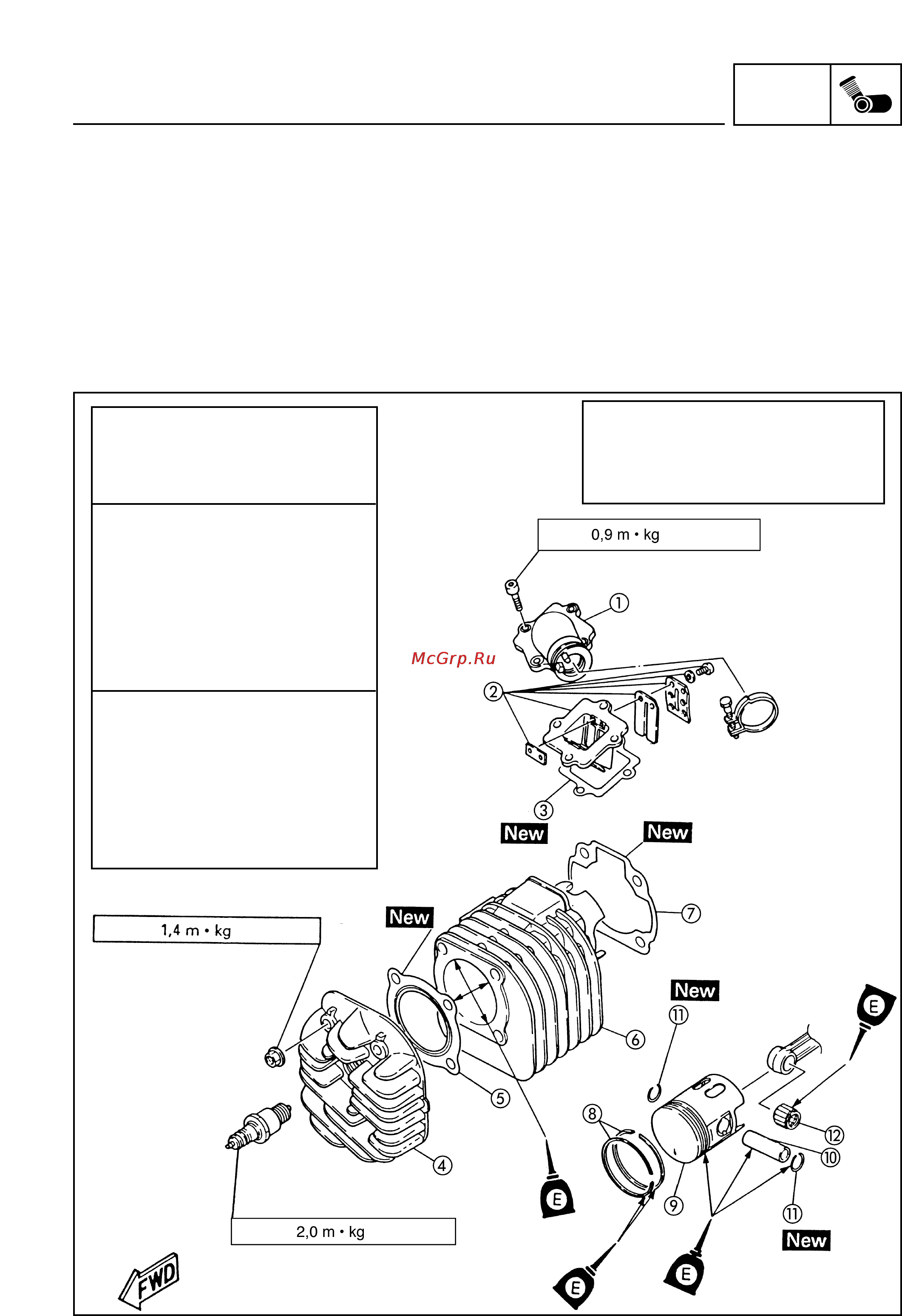

ASSEMBLY AND ADJUSTMENT OF ENGINE
4-35
PISTON, CYLINDER AND CYLINDER HEAD
Carburettor gasket
Reed valve
Gasket
Cylinder head
Cylinder head gasket
Cylinder
Cylinder seal
Piston rings
Piston
10 Piston pin
11 Circlips
12 Bearing
SPARK PLUG
MANUFACTURER/TYPE:
NKG/BR7HS
GAP BETWEEN ELECTRODES
0.06 ~ 0.7 mm
CLEARANCE FROM PISTON TO
CYLINDER:
0.034 ~ 0.047 mm
Limit: 0.1 mm
BETWEEN ENDS (INSTALLED):
Top ring
0.15 ~ 0.35 mm
Limit:
0.60 mm
Second ring
0.15 ~ 0.35 mm
Limit:
0.60 mm
LATERAL CLEARANCE:
Top ring
0.03 ~ 0.05 mm
Limit
0.10 mm
Second ring
0.03 ~ 0.05 mm
Limit
0.10 mm
