INSP
ADJ

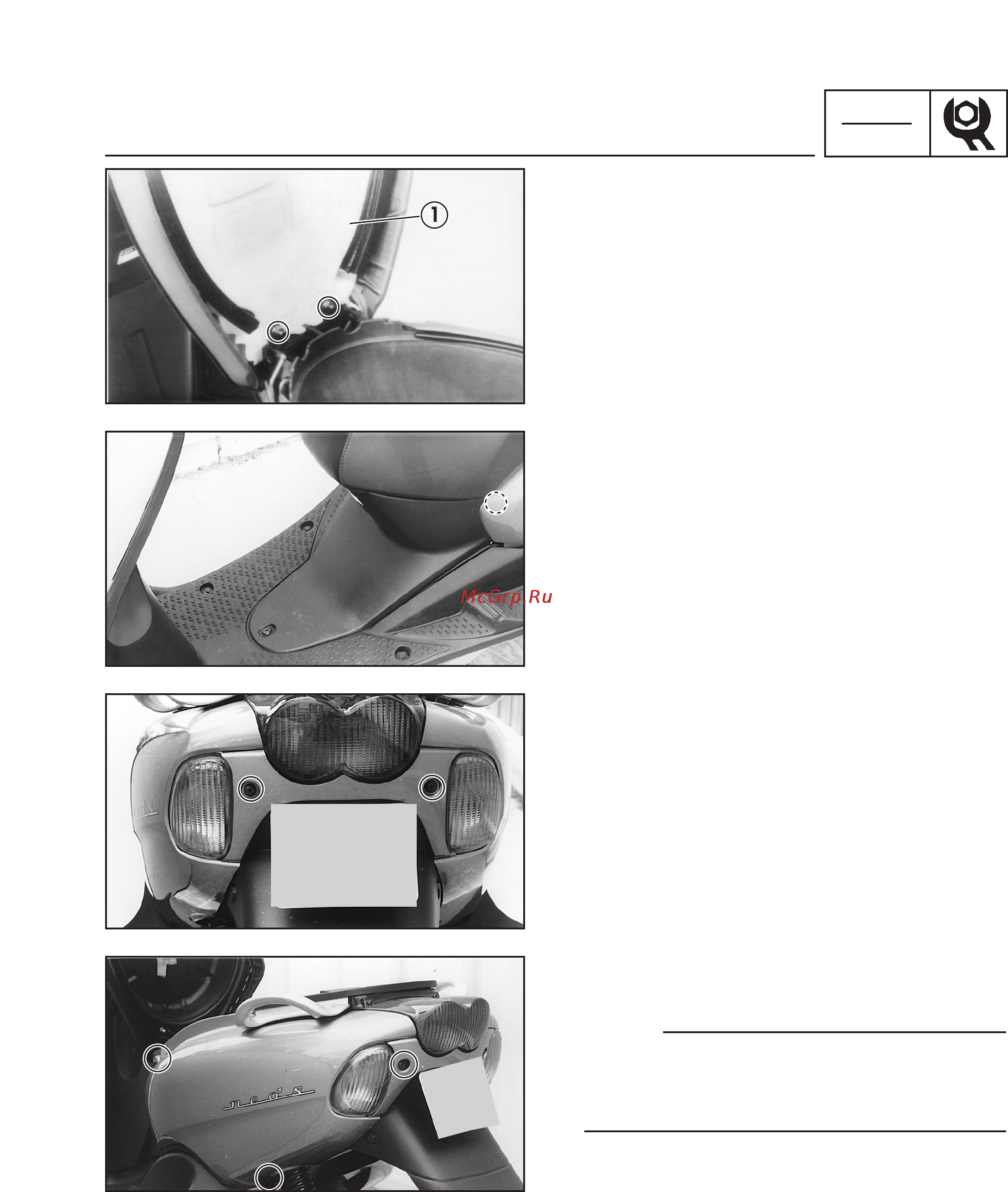

REAR BODYWORK AND FOOTREST
3-2
REAR BODYWORK AND FOO-
TREST
REMOVAL
1. Raise the seat
2. Remove:
• Seat
3. Remove:
• Battery cover
4. Remove:
• Rear cover
5. Remove:
• Side covers
NOTE:
When the side covers are being removed
unhook them from the catches and slide
them outwards.
