MOT

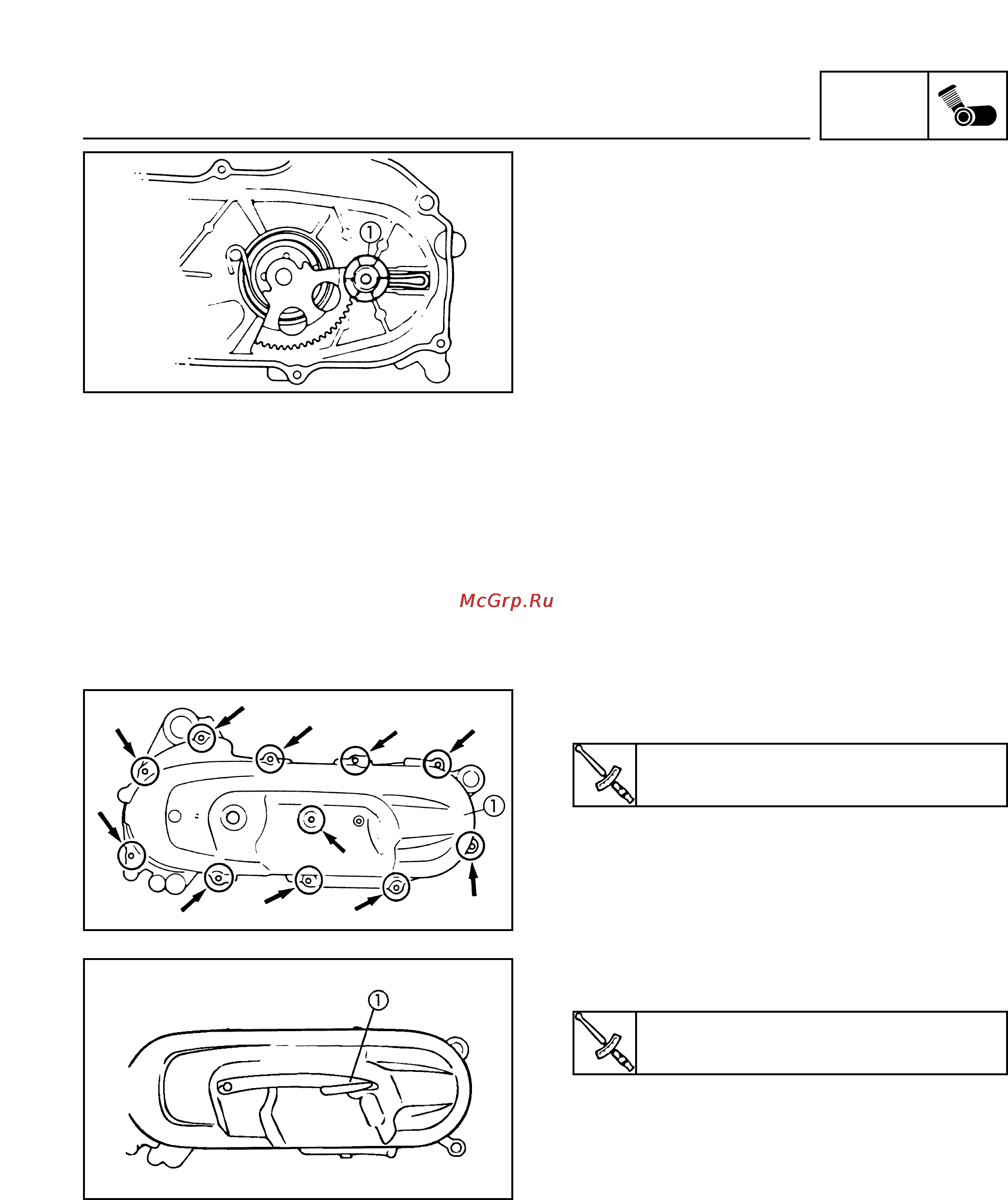

ASSEMBLY AND ADJUSTMENT OF ENGINE
4-34
2. Hook on:
• Return spring
(on pedal gear and hub)
3. Install:
• Pedal pinion gear
4. Install:
• Crankcase cover
5. Install:
• Kickstart pedal
Screw (crankcase cover)
7 Nm (0.7 m • kg)
Kickstart pedal
0.9 m • kg
