HANDLEBAR AND STEERING

6-23

3. Tighten:

• Steering nut



Steps for tightening the steering nut:

1. Tighten the lower ring nut  to 3.8 m•kg.

2. Loosen the lower ring nut  1/2 of a turn

and tighten to 0.65 m•kg.

3. Check the steering for smooth operation.

4. Install rubber washer .

5. Install central ring nut  and hand tighten

untill the lower and central ring nuts slots

allignet.

6. Install the lock washer .

7. Supporting the lower and central ring nuts,

install and thigten the upper ring nut to 7.5

m•kg.



4. Install:

• Handlebar 

• Bolt 

• Nut

NOTE:

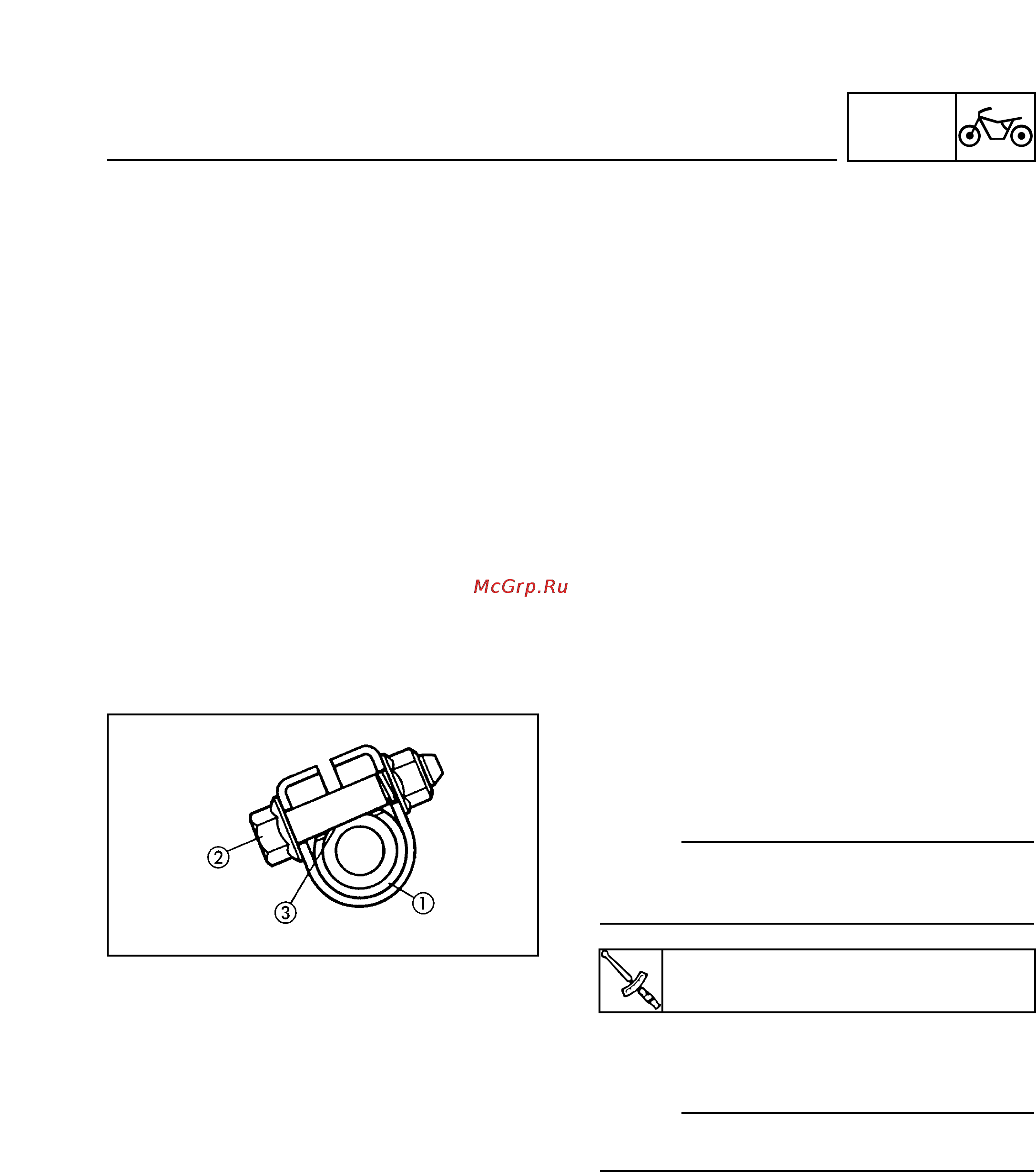

Match up the bolt  on the tooth of the stee-

ring column .

5. Install:

• Flange

NOTE:

Support electrical installation

6. Apply:

• Grease with lithium soap base

(on the end of the accelerator cable and

right end of the handlebar.)

Bolt (handlebar)

4.3 m • kg
