INSP
ADJ
SPARK PLUG INSPECTION
3-8
SPARK PLUG INSPECTION
1. Inspect:
• Incorrect type of spark plug
Replace
2. Inspect:
• Electrode
Worn/Damaged
Replace
• Insulator
Abnormal colour
Replace
The normal colour is a light to medium
coffee colour.
3. Clean the spark plug with a spark plug cle-
aner or wire brush.
4. Measure:

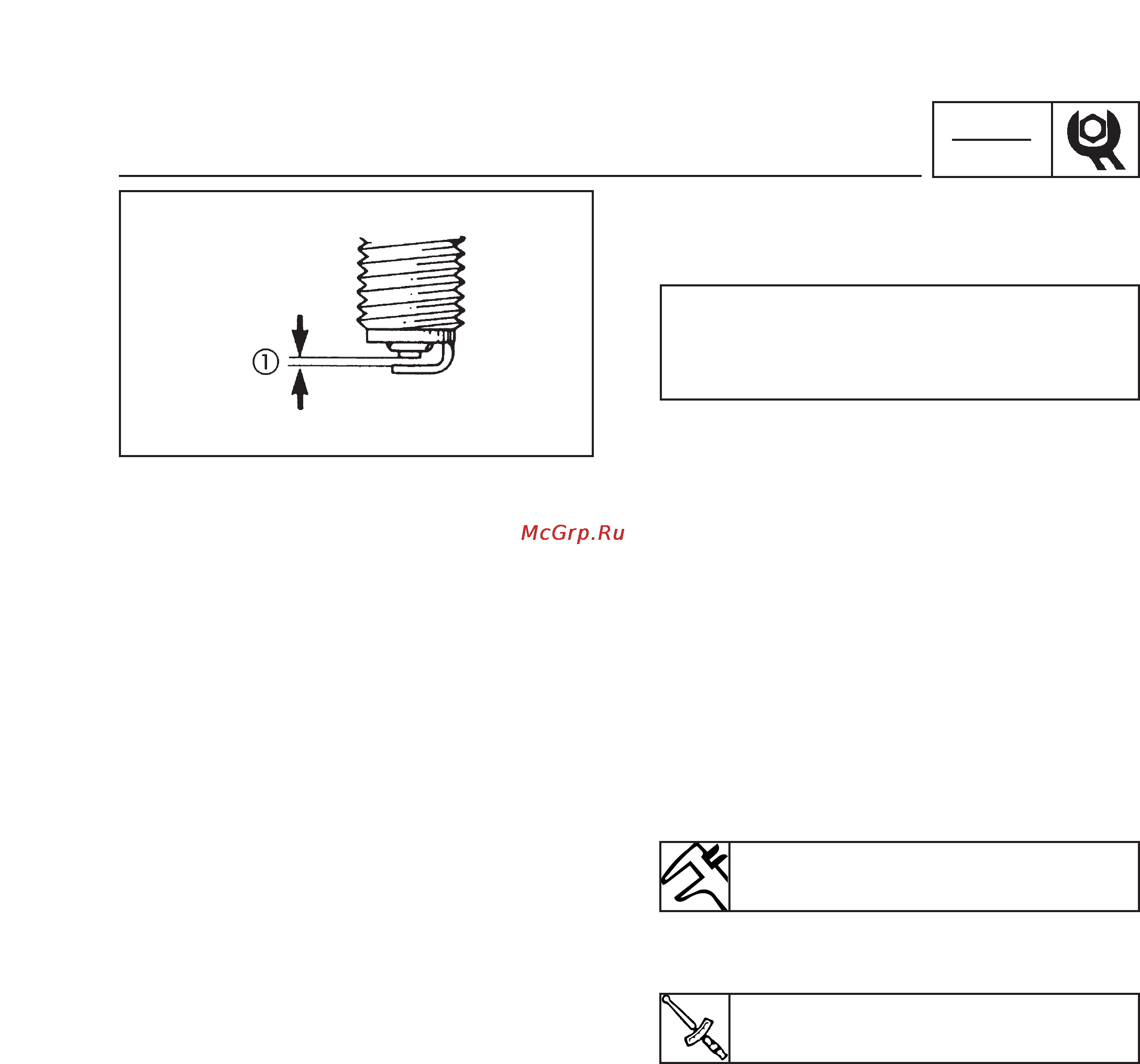

• Distance between electrodes
Use a thickness gauge.
Outside the specified value
Correct
5. Tighten:
• Spark plug
Gap between electrodes
0.6 ~ 0.7 mm
Spark plug
2.0 m • kg
Standard spark plug (5AD y SA15)
BR8HS/N.G.K.
for SA19
BRP4HS/N.G.K.
