ELEC
SIGNALLING SYSTEM
7-25

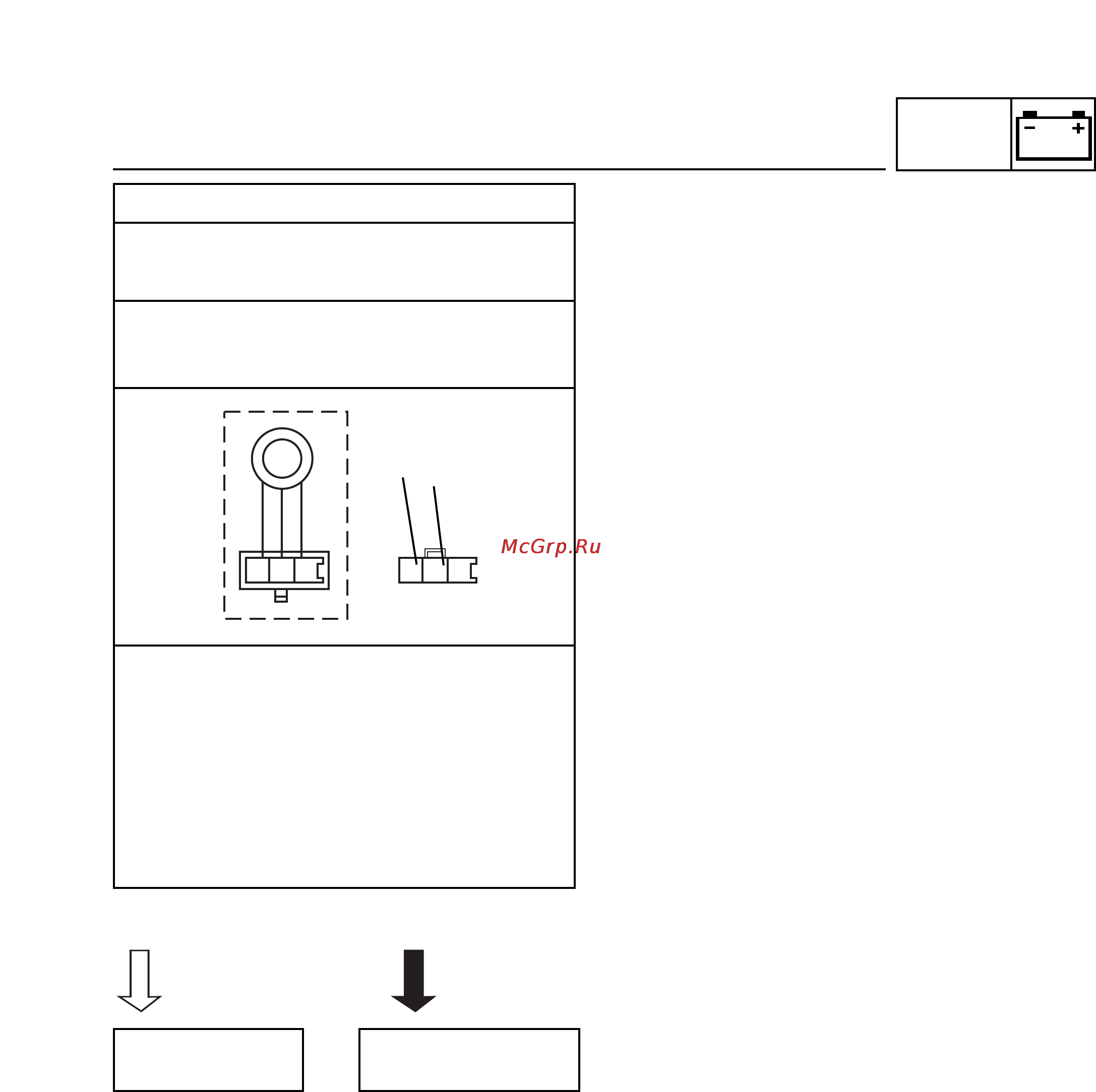

2. Speed sensor
• Connect the pocket tester (DC 20 V) to the
speed sensor coupler (wire harness side)
as shown.
Positive tester probe
blue/green
Negative tester probe
black/yellow
LB
R
B
Y
/
R
Y
/
L
G
/
• Set the main switch to “ON”.
• Elevate the front wheel and slowly rotate it.
• Measure the voltage (DC 12 V) of
red/yellow and black/yellow. With each full
rotation of the front wheel, the voltage rea-
ding should cycle from 0 V to 5 ~ 11V to 0
V to 5 ~ 11V, etc.
• Does the voltage reading cycle correctly?
Replace the speed
sensor.
YES
NO
The circuit is OK.
