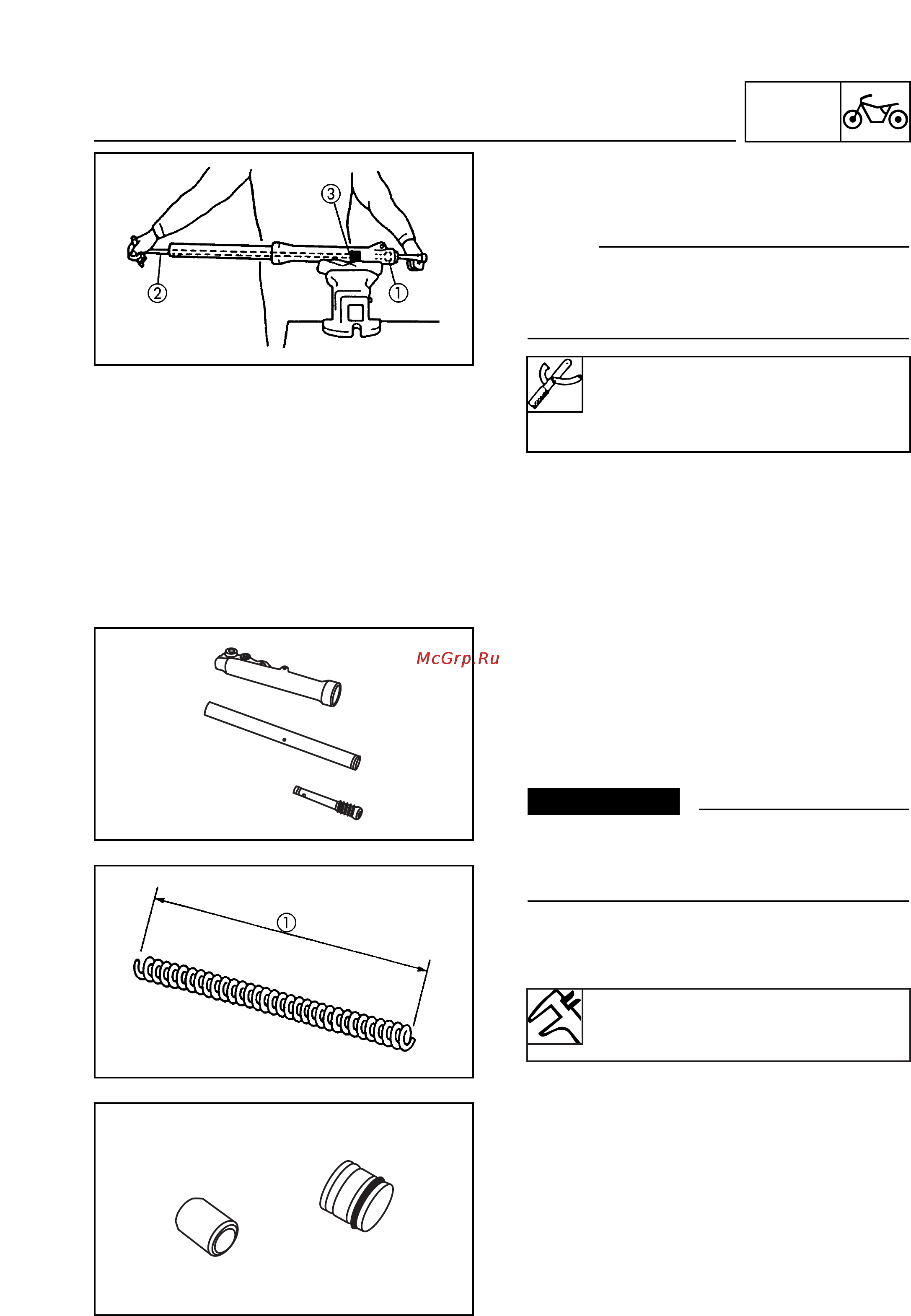

Yamaha NEOS 50 YN50 (2002) [118/161] Front fork
![Yamaha NEOS 50 YN50 (2002) [118/161] Front fork](/views2/1121427/page118/bg76.png)
CHAS
FRONT FORK
6-15
4. Remove:
• Bolt (shock absorber rod)
• Copper washer
NOTE:
Remove the bolt (shock absorber rod) while
the shock absorber rod is held with the T-
handle and a support
5. Remove:
• Inner pipe
• Shock absorber rod
• Oil lock piece (left side)
• Oil seal
INSPECTION
1. Inspect:
• Fork bar
• Outer tube
• Shock absorber rod
Striping/Warping/Wear/Damage
Change
ss
WARNING
Do not try to straighten a fork bar or an
outer tube as this may dangerously wea-
ken the tube.
2. Measure:
• Fork spring
Above specified limit
Change
3. Inspect:
• Oil lock piece
• O-ring (cover)
Wear/Damage
Change
T-handle:
90890-01326
Support:
90890-01294-A
Free length of fork spring (limit) :
Left 226 mm
Right 226 mm
