CHAS

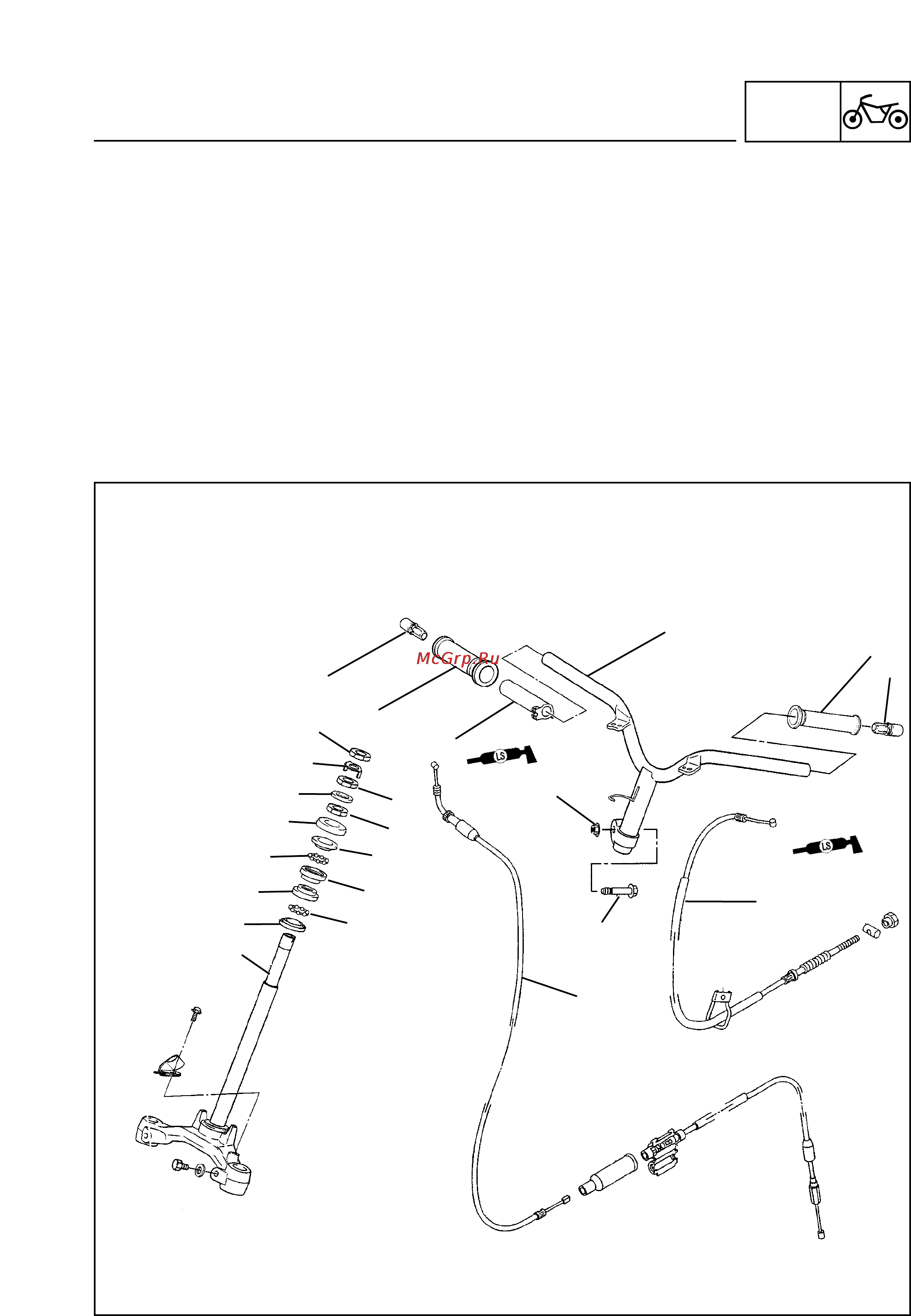

HANDLEBAR AND STEERING
6-19
HANDLEBAR AND STEERING
Handlebar
Grip cap
Throttle grip
Throttle grip guide
Grip
Nut
Bolt
Throttle cable
Brake cable
10 Upper ring nut
11 Lock washer
12 Center ring nut
13 Rubber washer
14 Lower ring nut
15 Bearing cover
16 Upper bearing race
17 Bearing cage
18 Bearing race
19 Lower bracket
10
11
13
15
17
16
18
19
12
14
16
18
17
