Yamaha NEOS 50 YN50 (2002) [74/161] Assembly and adjustment of engine
![Yamaha NEOS 50 YN50 (2002) [74/161] Assembly and adjustment of engine](/views2/1121427/page74/bg4a.png)
MOT

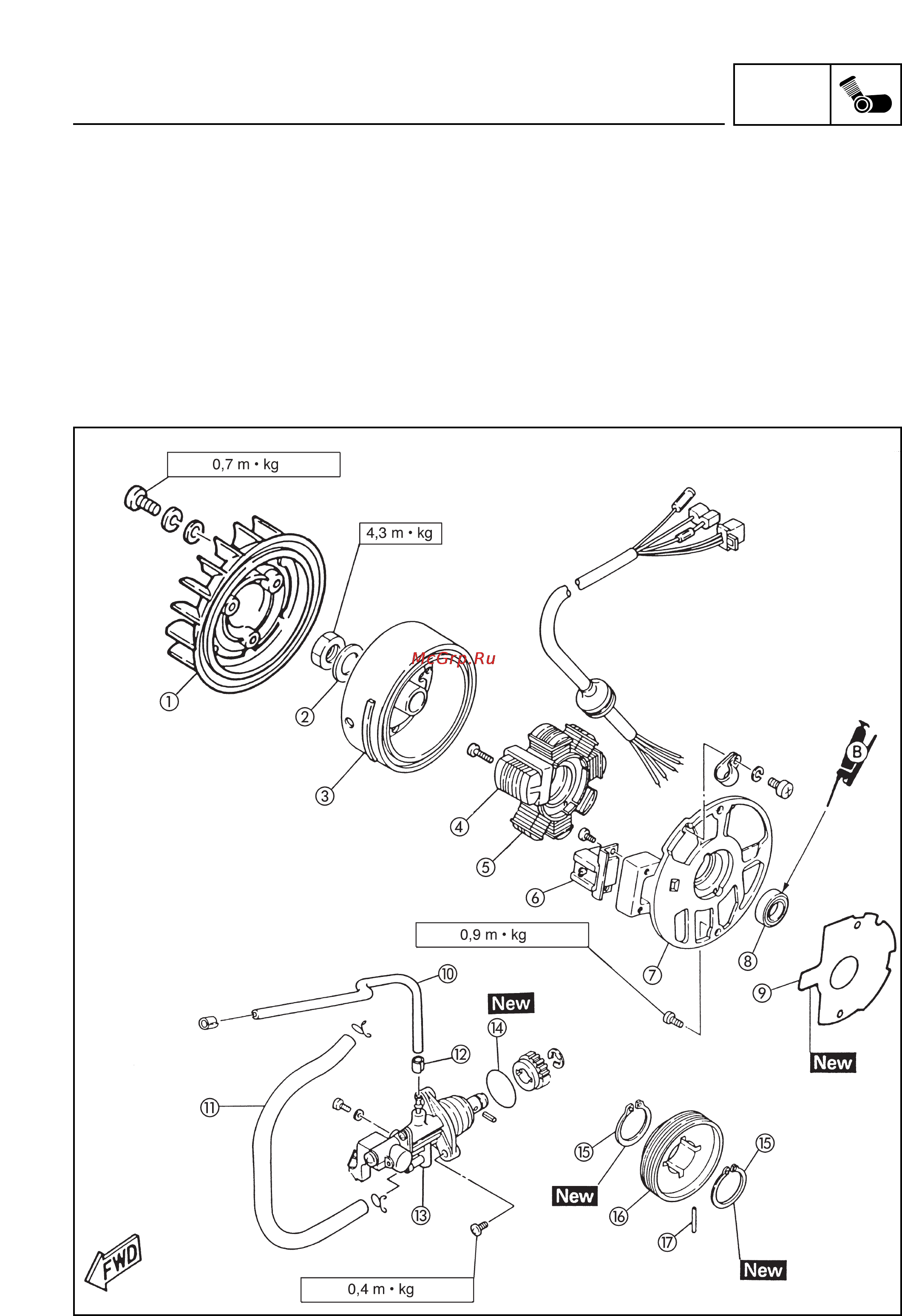

ASSEMBLY AND ADJUSTMENT OF ENGINE
4-23
Fan
Flat washer
Rotor assembly
Charge coil
Lighting coil
Harnessing coil
Stator plate
Oil seal
Gasket
10 Oil outlet pipe
11 Oil pipe
12 Bushing
13 Autolubrication pump
14 O-ring
15 Elastic circlip
16 Oil pump drive gear
17 Pin
AUTOLUBRICATION PUMP AND MAGNETIC FLYWHEEL
