GEN/
INFO
IMPORTANT INFORMATION /
SPECIAL TOOLS
1-3

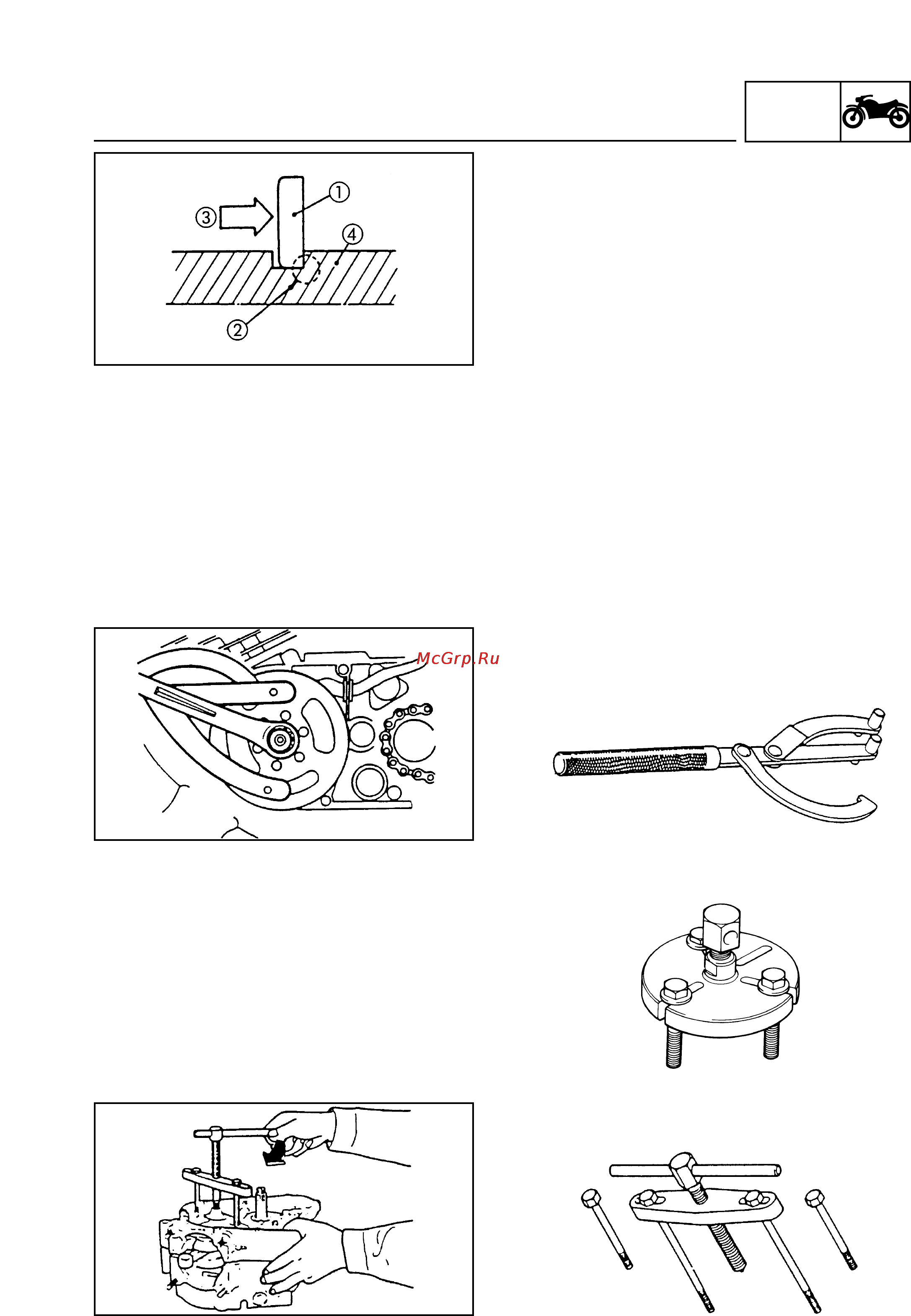

CIRCLIPS
1. All circlips should be carefully inspected
before assembly. Always replace circlips of
the piston drum after use. Replace defor-
med circlips. When installing a circlip ,
ensure that the corner with the sharp edge
is placed in the opposing direction to
the thrust it receives. See sectional
view. Axle
SPECIAL TOOLS
Appropriate special tools are needed to com-
plete and perfect assembly with accuracy.
Using correct tools will help to avoid damage
caused by the use of incorrect tools or impro-
vised techniques.
FOR SERVICING THE ENGINE
1. Engine wheel holding tool
(90890-01235)
2. Engine wheel removal tool
(90890-01362)
3. Crankcase separation tool
(90890-01135)
