CHAS
HANDLEBAR AND STEERING
6-24

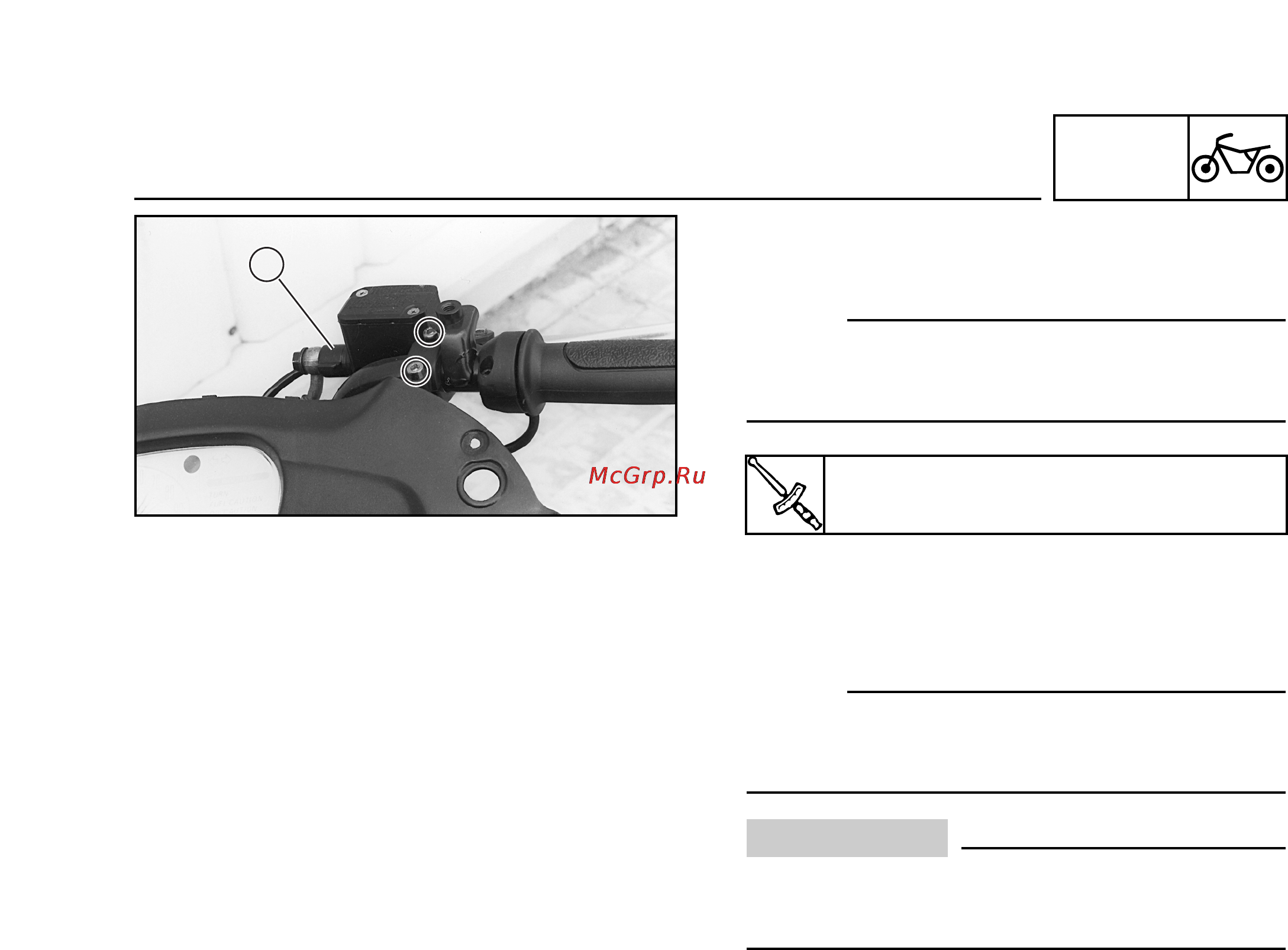

7. Install:
• Brake pump
NOTE:
First tighten the upper bolt, then the lower
bolt.
8. Install:
• Rear handlebar cover with speedometer
• Front handlebar cover
NOTE:
Connect the speedometer cables, signalling
and lighting systems.
ATTENTION:
Situate the speedometer cable through its
housing in the rear cover.
9. Install:
• Front fork
See “INSTALLATION OF FRONT FORK
SECTION”.
10. Install:
• Front wheel
See section “INSTALLATION OF FRONT
WHEEL”
1
Bolt (brake pump)
0.9 m • kg
