DNS-6040M/DNS-6040 User’s Manual

Shutdown/ Restart

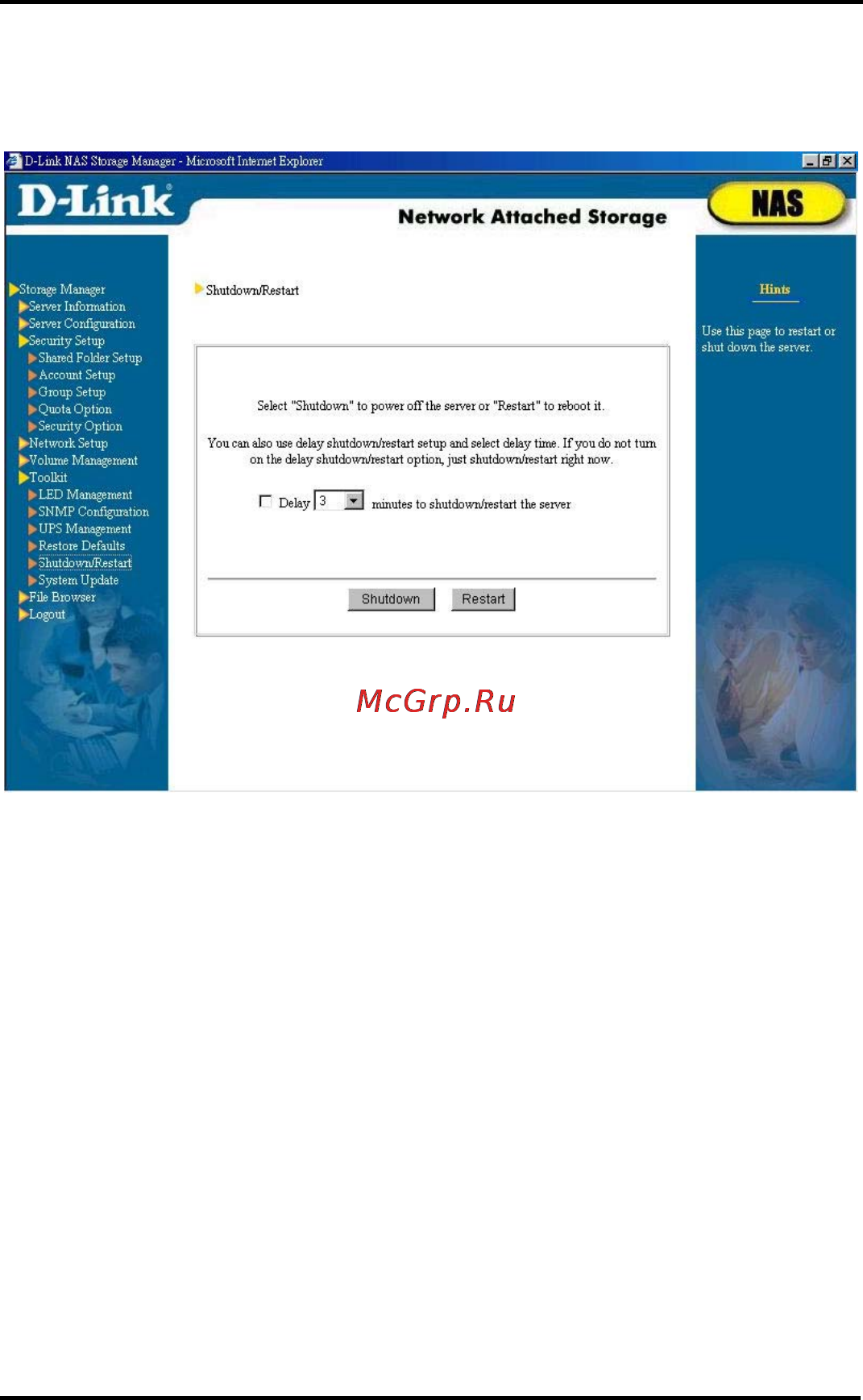

Use this page to Shutdown or Restart the server. You can

also use the power switch on the NAS server. To preserve data

integrity, never unplug the server before it has been properly

shut down. System administrator can select the option Delay xxx

minutes to shutdown/restart the server and the setup will be

executed after the time specified.

Wait for the power LED to go off and the server to halt

operation completely before unplugging and moving the server.
