D-Link DNS-6040 [40/185] Security setup

DNS-6040M/DNS-6040 User’s Manual

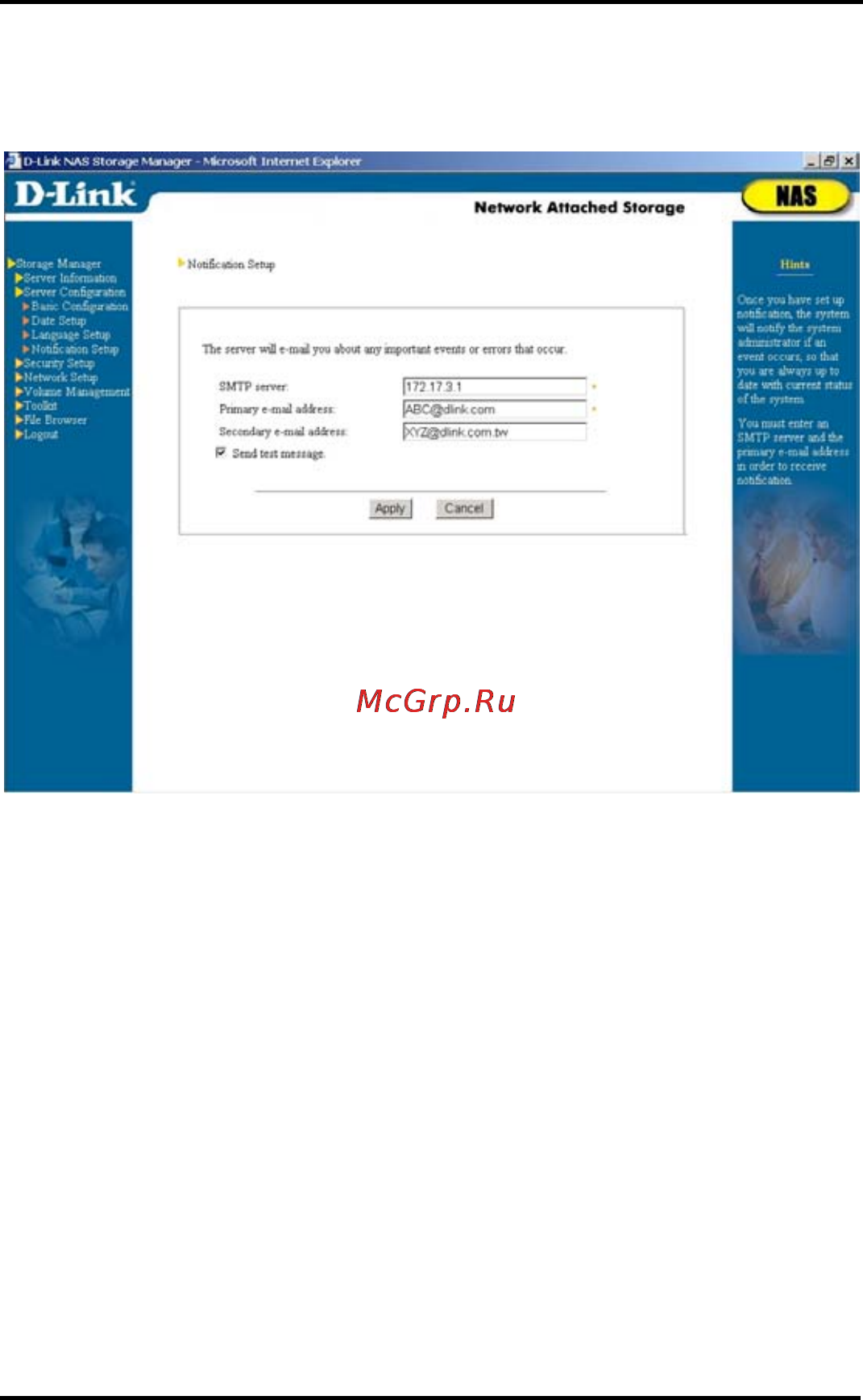

Event Notification Setup

System administrator can change setup of event

notification. For ways of setting up, please refer to Server

Configuration



Basic Server Configuration



Enter a recipient

for notification of Chapter 3.

Security Setup

In this section the administrator can define users and user

groups to access certain files and folders on the NAS server.
