Add new tag after files upload 128

Dns 6040m dns 6040 user s manual 128

There are two ways a user can create a tag 128

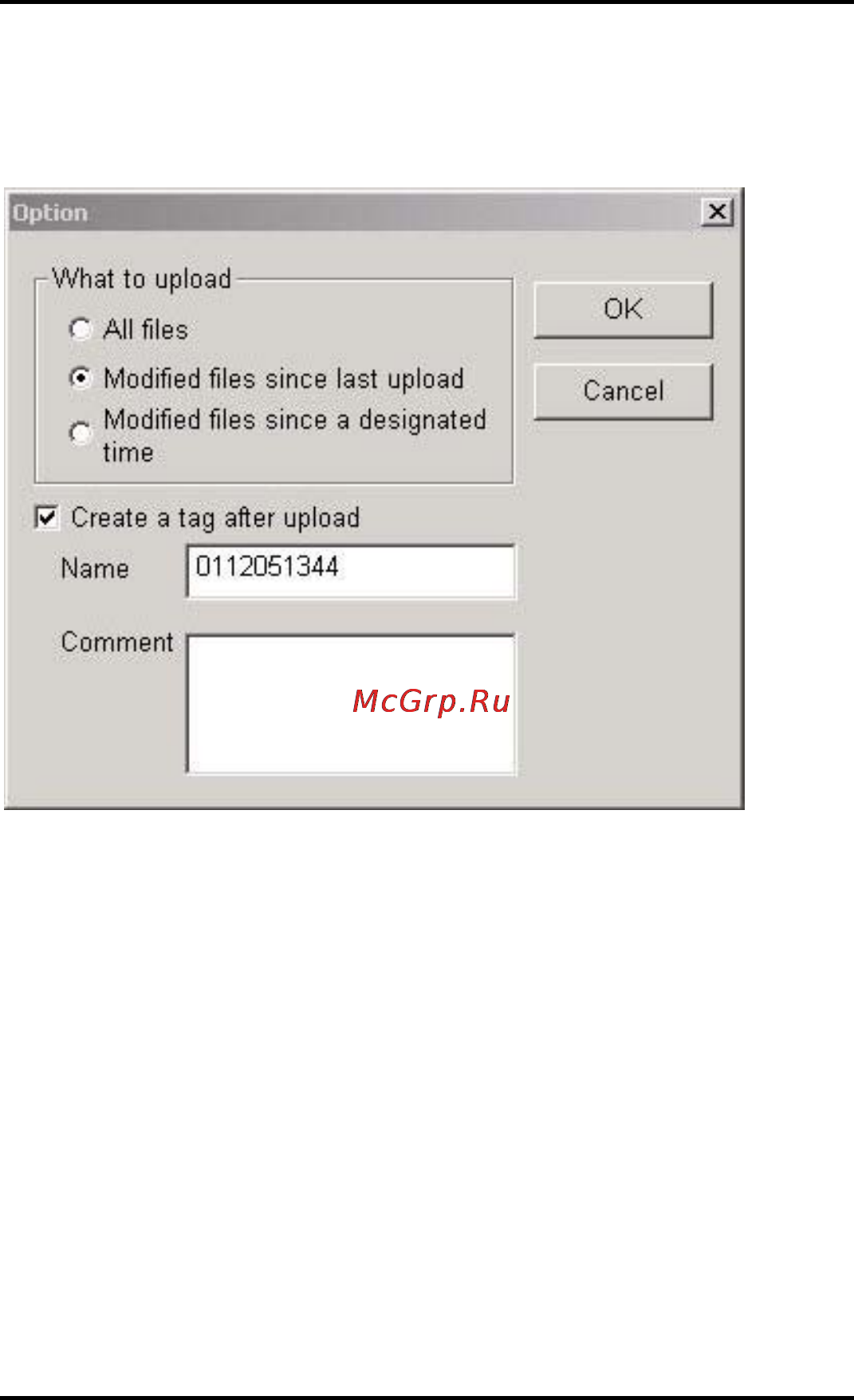

User can create new tag to uploaded files when uploading files in the backup tab please note when creating tag the most updated versions of files in backup directories in nas server will be saved the two examples will illustrate this point 128
