DNS-6040M/DNS-6040 User’s Manual
93

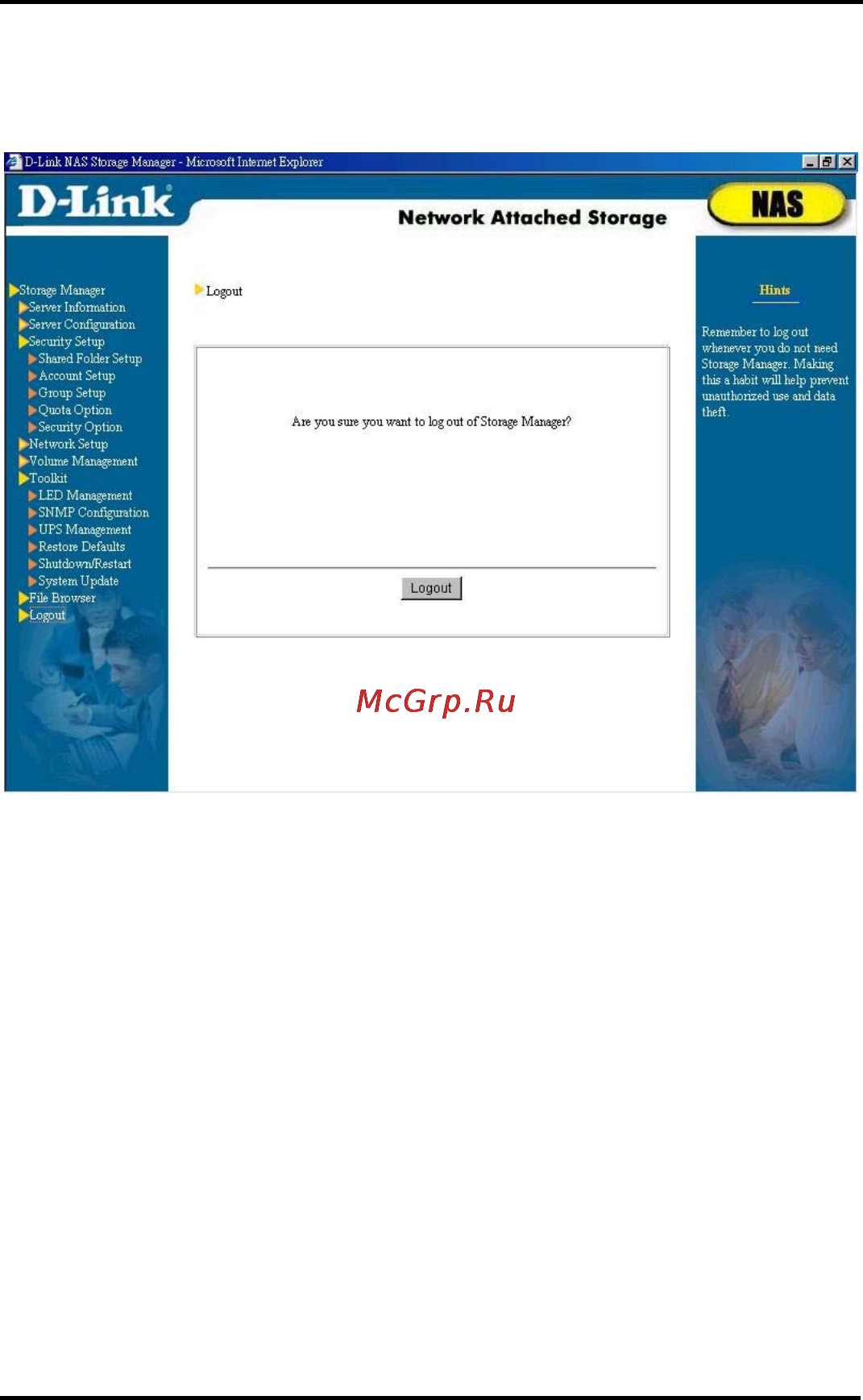

Logout
In the interest of safety, remember to log out whenever you
do not need Storage Manager.
So much for the initial configuration. Administrators and
other users have three options to configure the server in the
future:
Using a browser to connect to the server’s IP address.
Running
D-Link NAS Filer Assistant Utility
to locate servers, then
double-clicking on a server’s name to start Storage Manager.
On Windows clients with NetBEUI support you can enter the server
name directly into the address bar of the browser window.
If the user is not the system administrator (root) but a
normal user (local account), only that particular user’s personal
data can be modified. In
Storage Manager
, only Personal
Information and Personal Settings, File Browser, along with the
Logout option will appear. Users can set up their own e-mail
