DNS-6040M/DNS-6040 User’s Manual
91
System Update
Once you have obtained the OS upgrade, follow these steps to
update your system:
Download the update file (assume its name as update.pat) from
D-Link Website to any shared folder in the NAS server.

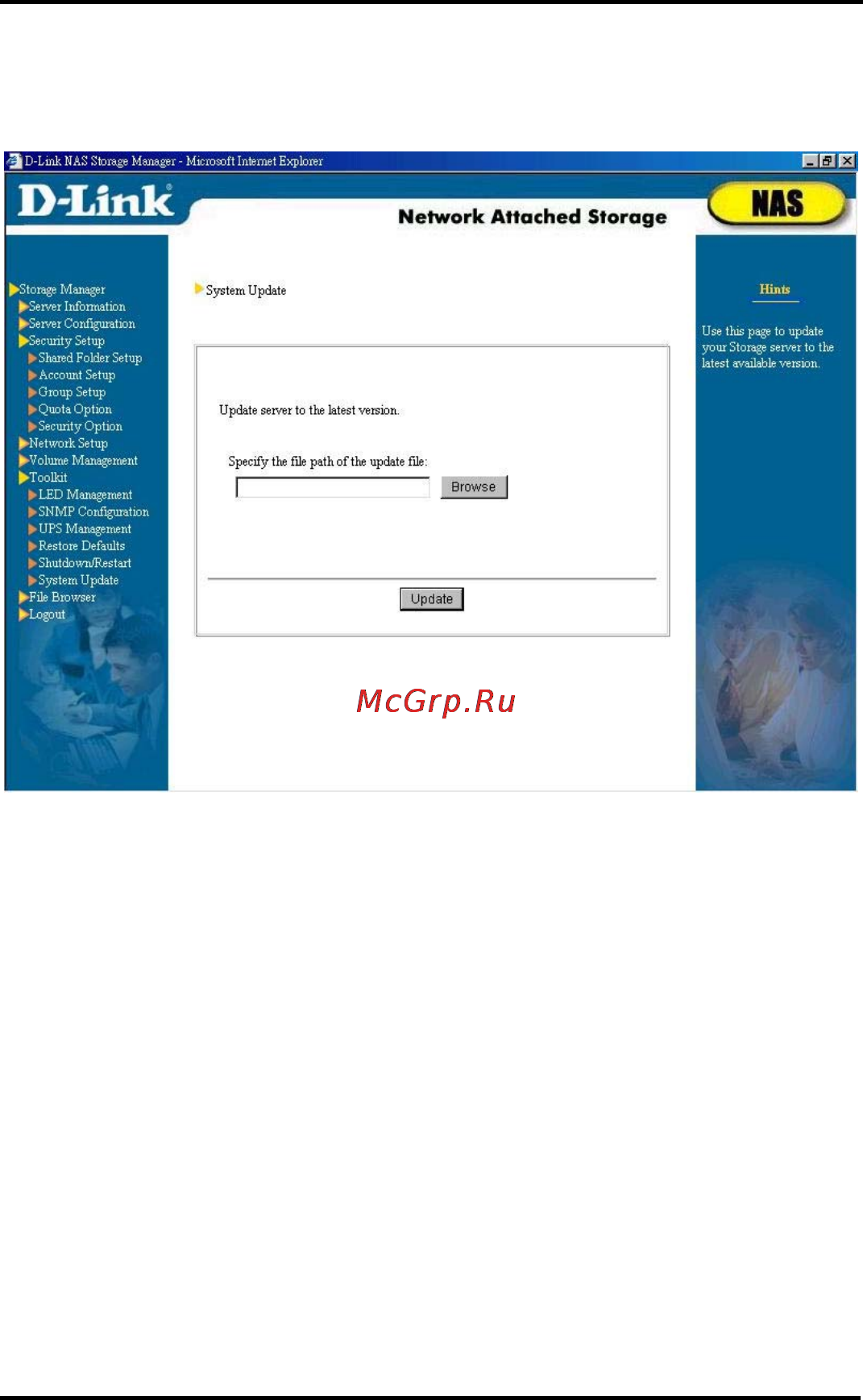

Open Storage Manager, and go to Toolkit
System Update section.
Click Browse to select name and path of system update file.
Click on Update. The update process will start immediately and the
system will restart automatically upon completion.
When upgrading the system, note the following:
System update will not affect the files saved on the server. However,
we strongly recommend that the administrator backup all the files on
the server before updating the system.
The server cannot be accessed while the upgrade is running.
When the system is being updated, do not turn off the server or remove the
AC power, or it will cause errors in the system operation.
