DNS-6040M/DNS-6040 User’s Manual

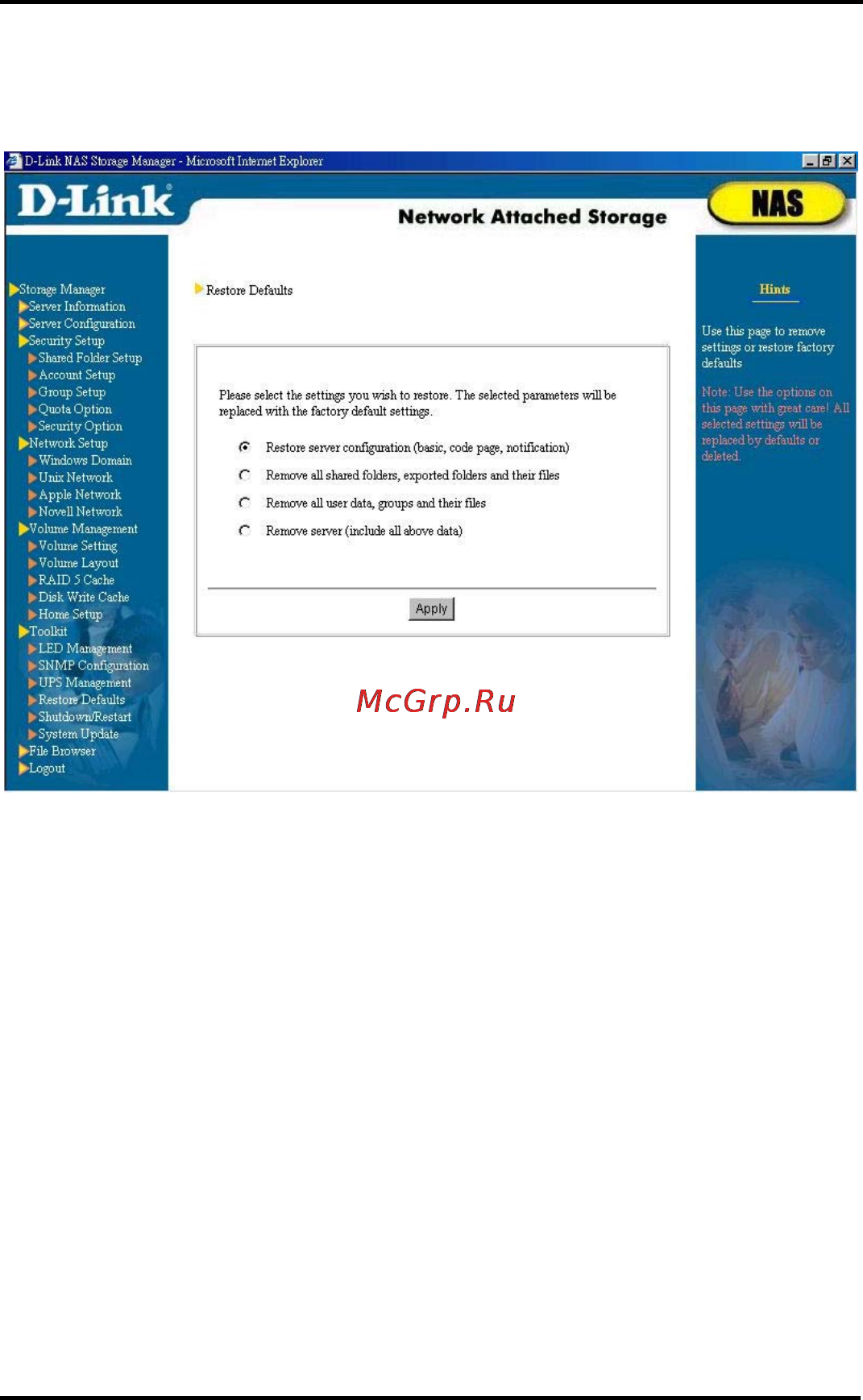

Restore defaults

The system administrator has the option to restore factory

defaults for all settings, or remove all user settings in the system.

Four options are available:

 Restore Server Configuration (basic, code page, notification): The

Storage Manager’s Server Configuration will be reset to factory

defaults.

 Remove all shared folders, exported folders, and their files.

 Remove all user data, groups, and their files.



Remove server (include all above data).

Note: Use the options on this page with great care! All selected

settings will be replaced by defaults or deleted.
