DNS-6040M/DNS-6040 User’s Manual

D-Link NAS Filer for Business Resources

D-Link NAS Filer Assistant CD

This CD provides four utility programs: D-Link NAS Filer

Assistant、D-Link NAS Backup Utility and D-Link NAS Data

Replicator.

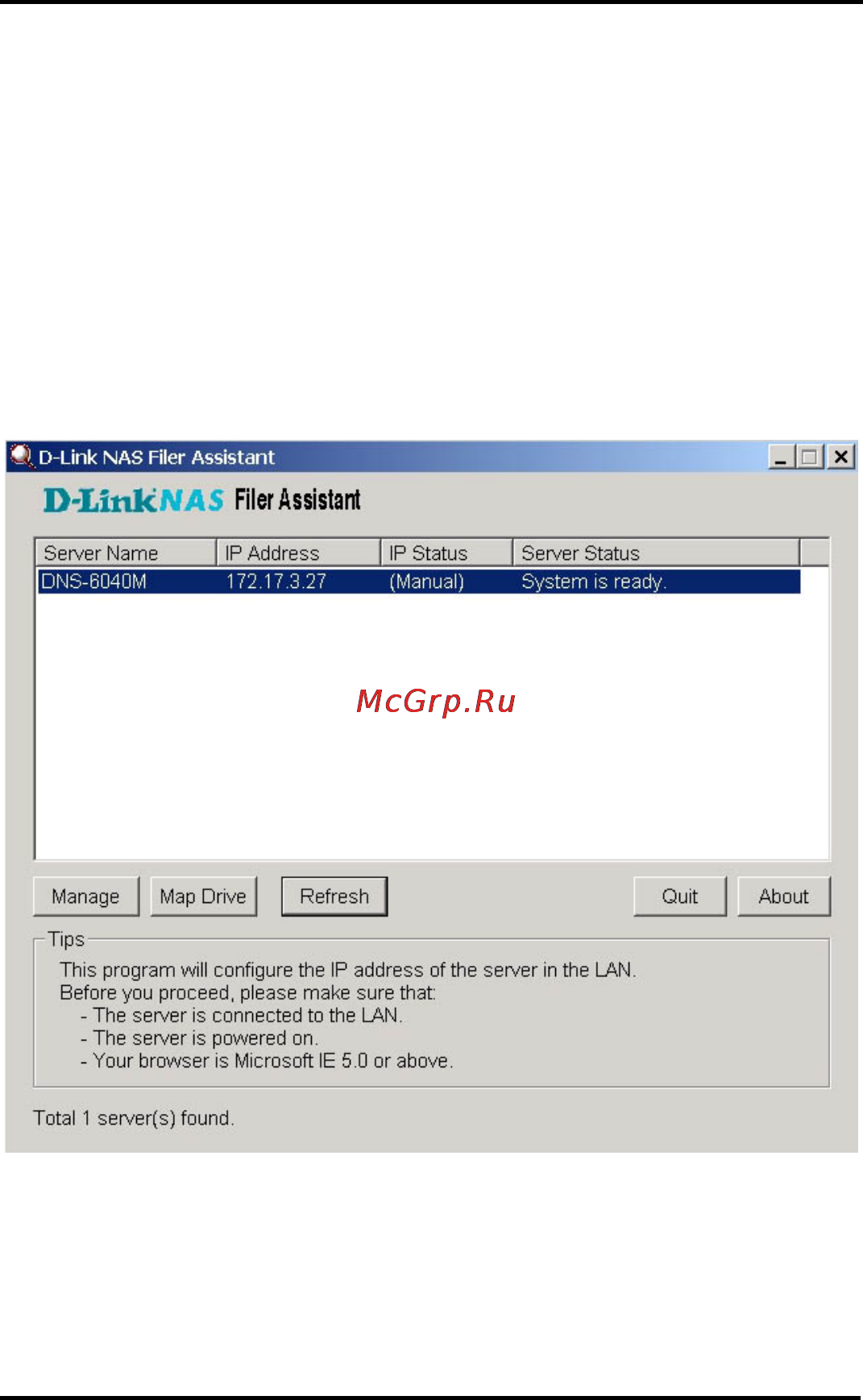

D-Link NAS Filer Assistant

is designed for use by system

administrator and all Windows clients on the LAN.

The system administrator uses

D-Link NAS Filer

Assistant

to search and setup the IP addresses of all NAS

(Network Attached Storage) servers running

D-Link NAS Filer
