D-Link DNS-6040 [23/185] Enter the root password

DNS-6040M/DNS-6040 User’s Manual

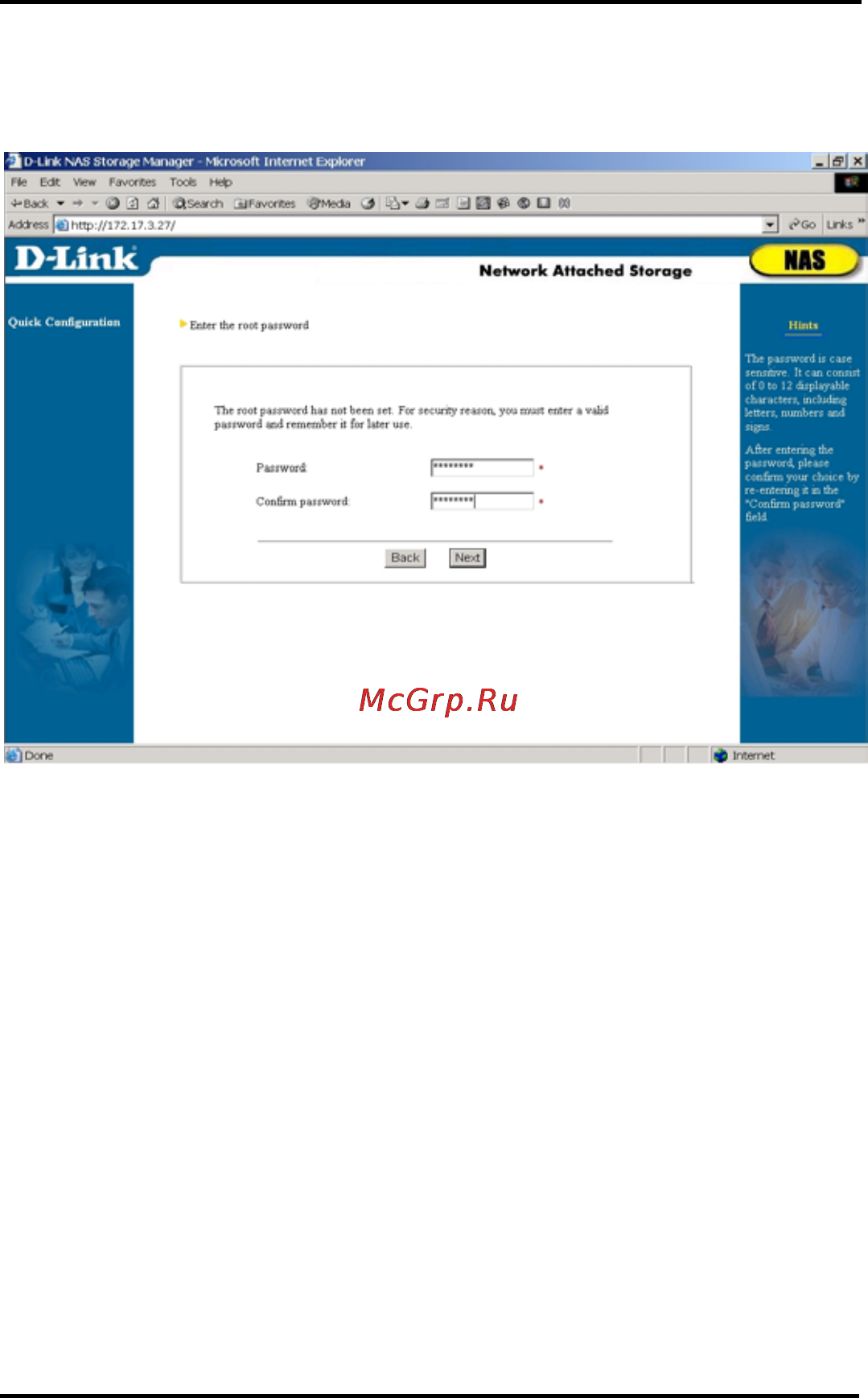

Enter the root password

Since this is the first time using this system, the system will

prompt for changing the default (system administrator)

password. Make a note of this password for future access to the

NAS server.

The password is case-sensitive and can consist of 0 to 12

displayable characters, including letters, numbers and signs.

After entering the password, please confirm your choice by

re-entering it in the Confirm password field.
