DNS-6040M/DNS-6040 User’s Manual

Server Configuration

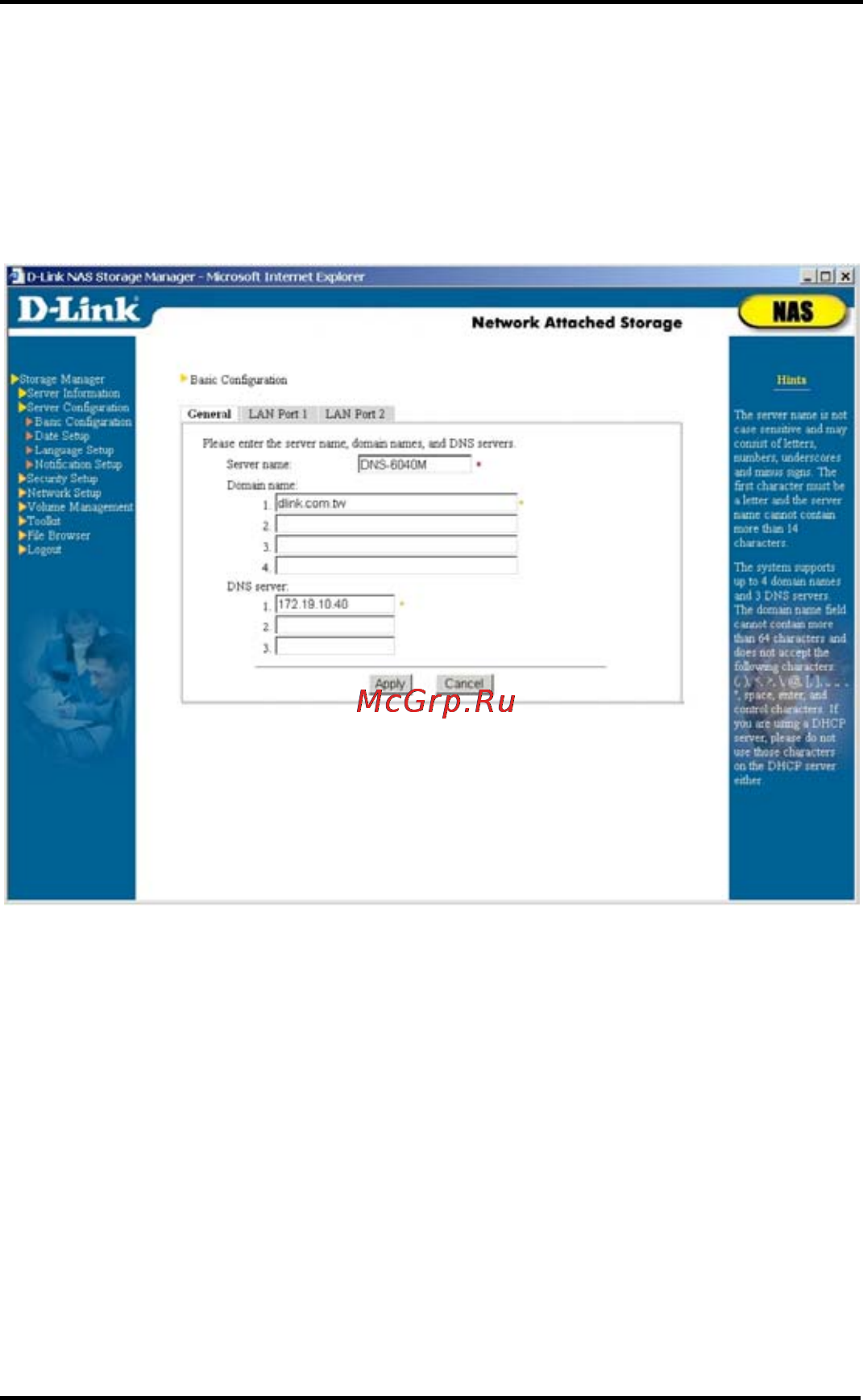

Basic Configuration

General

System administrator can change general server

information such as server name and network settings. Please

refer to the Server Configuration



Basic Server Configuration

unit of Chapter 3 for setup methods.
