DNS-6040M/DNS-6040 User’s Manual
14
Server Configuration

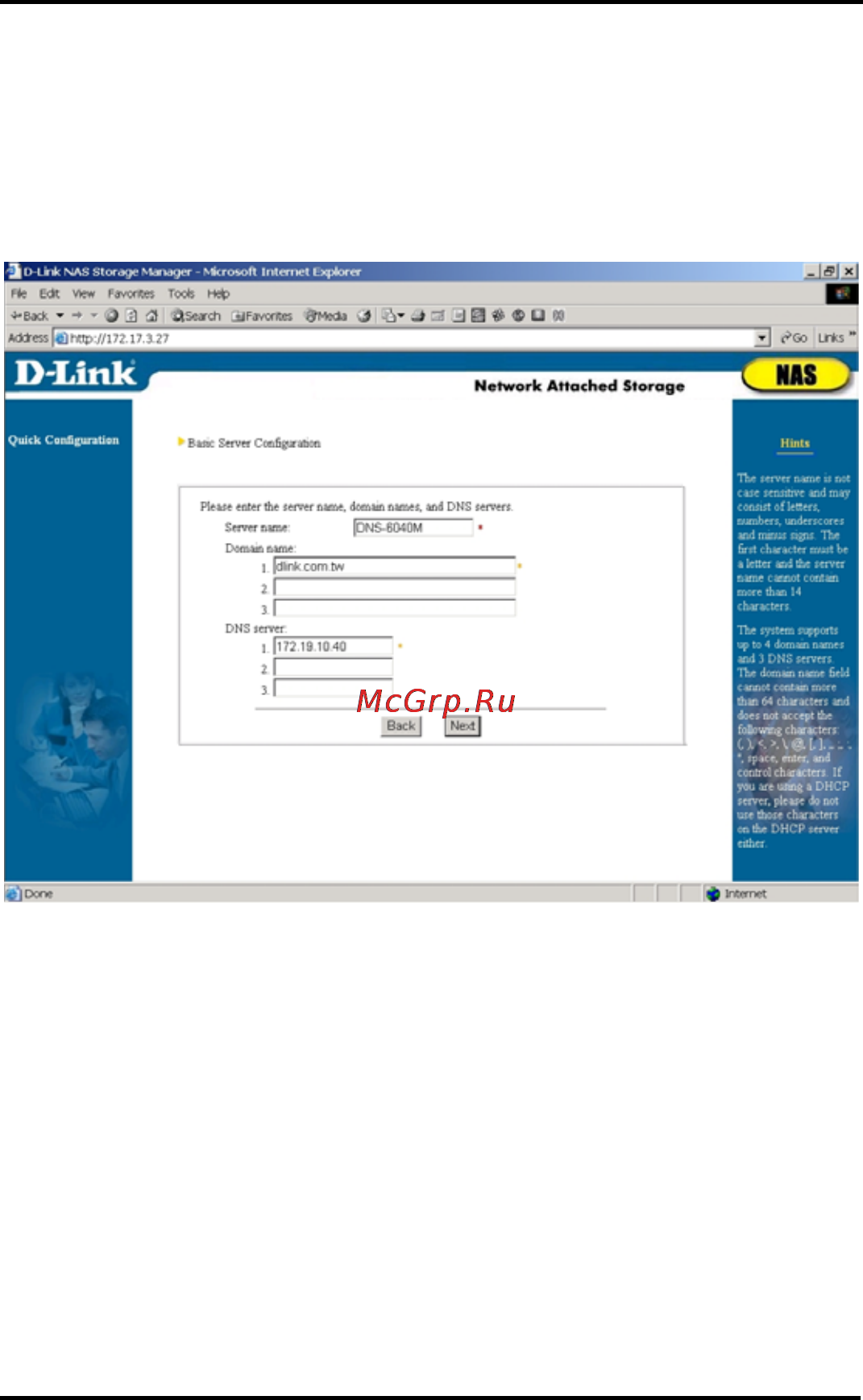

Basic Server Configuration
System administrator can change the default server name
here and further configure the network settings.
First you have a chance to change the preset server name.
Please note that the server name must be unique, meaning that
no other server in the network should have the same name. The
name is not case-sensitive and cannot exceed 15 characters. The
first character must be a letter; the other characters can be letters,
numbers, the underscore or minus sign.
This system supports up to four domain names and three
DNS servers. The length of the domain name cannot exceed
sixty-four characters. When getting network configuration
through DHCP server, if DHCP server has already created
