DNS-6040M/DNS-6040 User’s Manual
15
multiple domain names and DNS server setup, this page will
capture the first item from the DHCP server. The system
administrator must specify other items manually.
TIP
The domain name field does not accept the following characters. If you are
using a DHCP server, do not use these characters on the DHCP server either:
(,), <, >, @, \, [,], , , ;, :, “, space, enter (/n) and control characters.

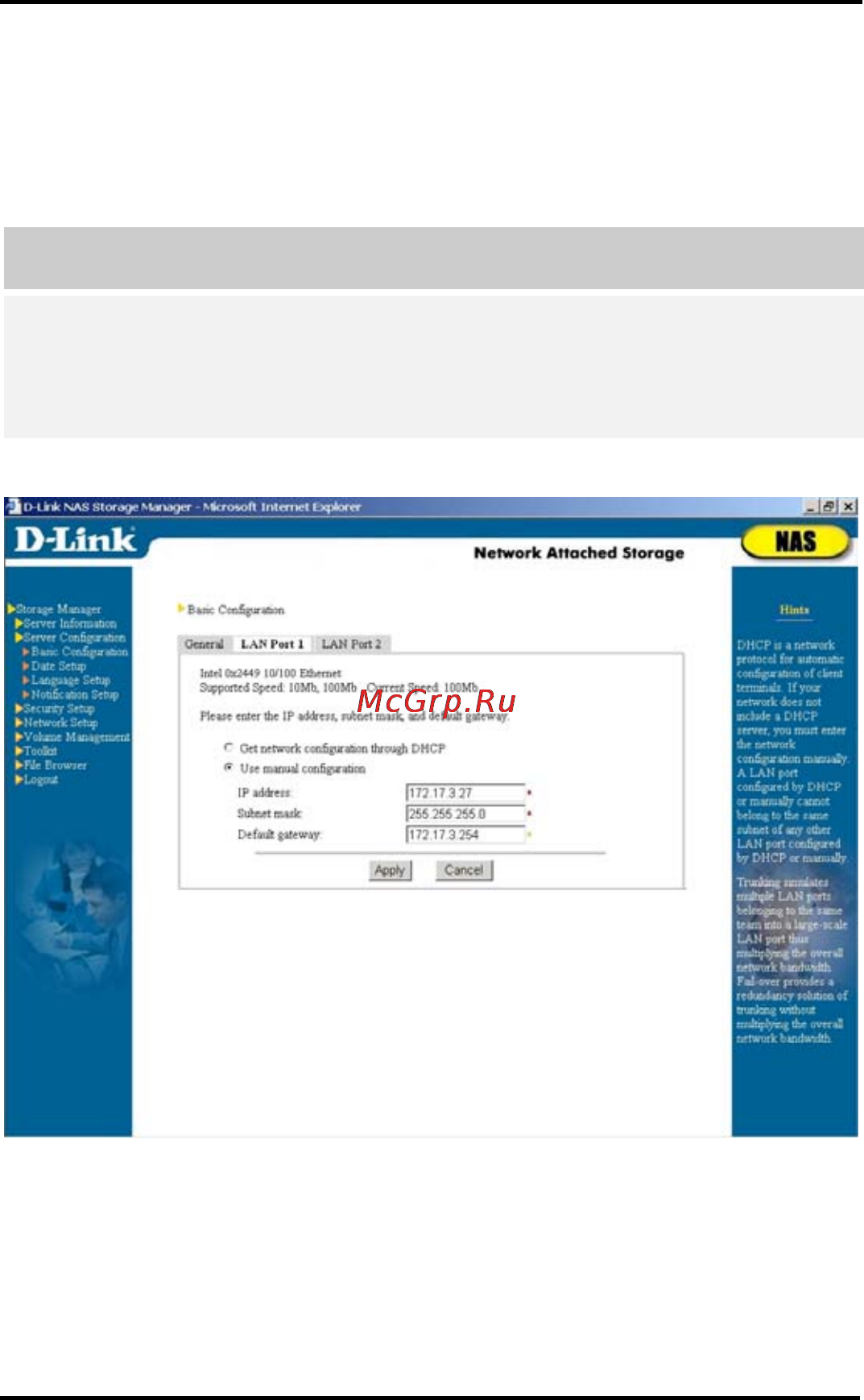

LAN Port 1
Next, please setup the IP address of the first network card.
This page will show the setup information previously defined in
D-Link NAS Filer Assistant Utility, and system administrator
can make additional change here.
If your LAN includes a DHCP server, click Get network
configuration through DHCP. Otherwise, choose Use manual
