DNS-6040M/DNS-6040 User’s Manual

Please note:

1. In this system, each network card IP address must be in different

subnet, thus when choosing network type through DHCP please make

sure if the subnet has any DHCP server available for use.

 Please use a switch with “Trunking/Fail-over” support to make sure

the “Trunking/Fail-over” feature can be fully supported by

D-Link

DNS-6040 Series.

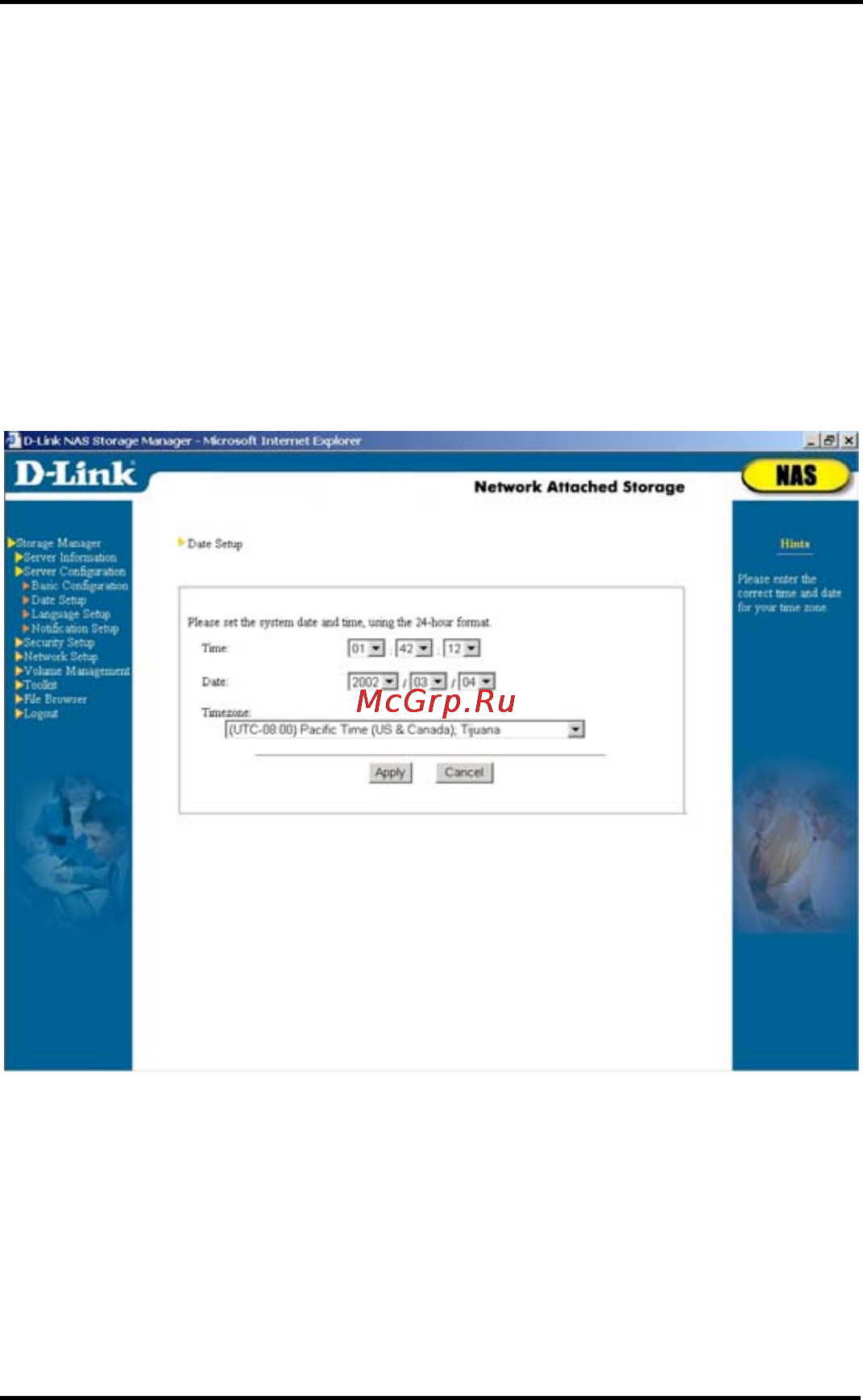

Date Setup

System administrator can change the time, date and time

zone of the NAS server. Please refer to Server

Configuration



Basic Server Configuration



Enter the system

date and time unit of Chapter 3 for ways of setup.
