DNS-6040M/DNS-6040 User’s Manual
27

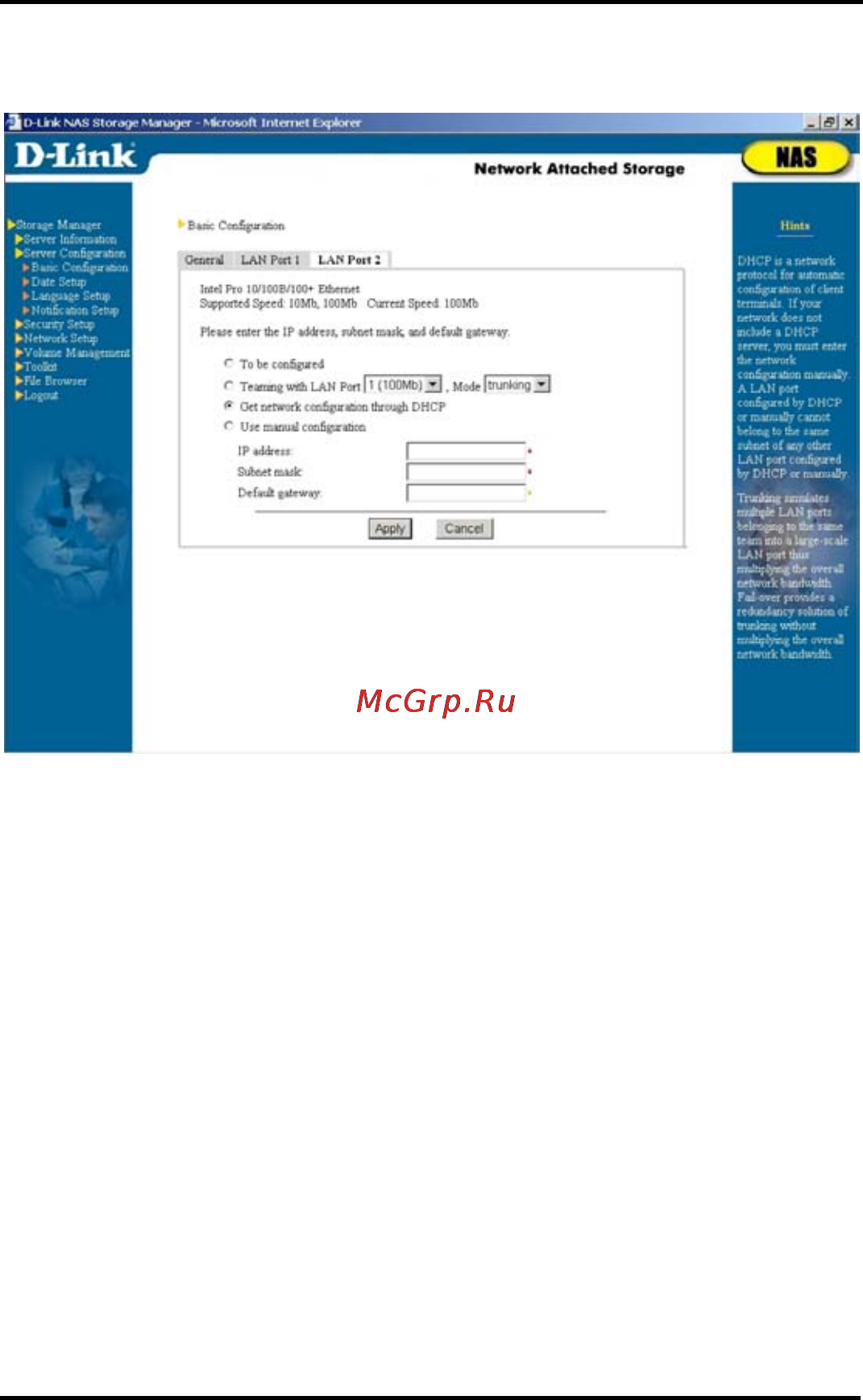

LAN Port 2
If system detects more than one network card in NAS
server, this page will automatically display LAN Port N tab to
enable setup. "N" represents the id number of the LAN port in
the NAS server.
System administrator can “trunk” this LAN port with other
LAN port(s), i.e. “trunking” or "Link Aggregation", to simulate
multiple ports into a large-scale network port thus multiplying
the overall network bandwidth. For example, if a NAS server
shares two 100 Mbps Fast Ethernet LAN cards, through
trunking the two cards into one, the bandwidth will expand to
200 Mbps and both cards will share the same IP.
Or, if a network has more than two subnets, system
administrator can setup each network card separately into
different subnet IP address to achieve the "Load Balancing"
effect.
