DNS-6040M/DNS-6040 User’s Manual

configuration. Filling out the column with a red star sign on the

right is mandatory, while filling out the column with the orange

star is recommend by the system.

If NAS server supports more than one network card, please

go to Server Configuration



Basic Configuration after

completion of Quick Configuration to continue setup of other

network cards.

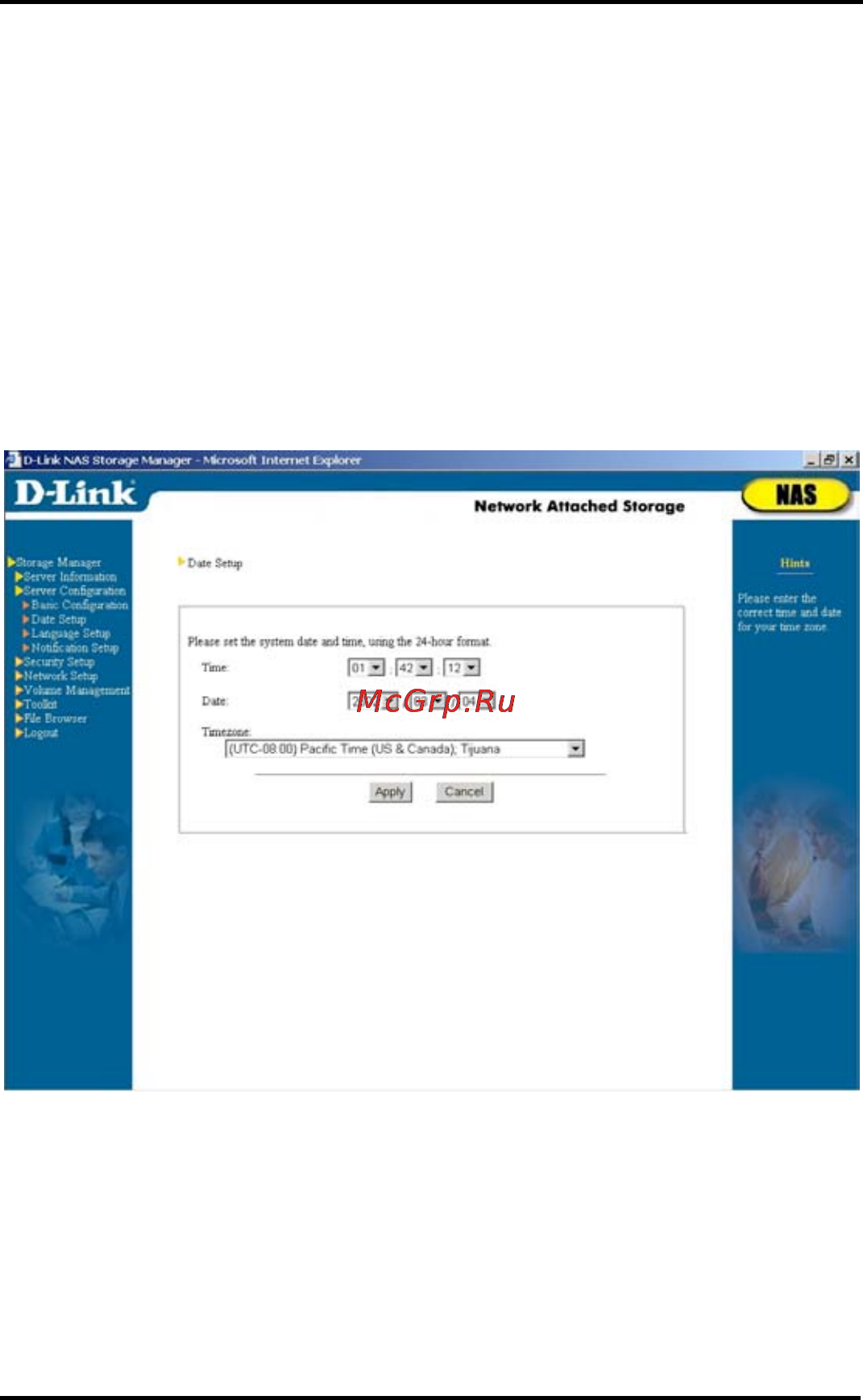

Enter the system date and time

Use a 24-hour format to enter the system date and time, as

well as the correct time zone.
