DNS-6040M/DNS-6040 User’s Manual
17

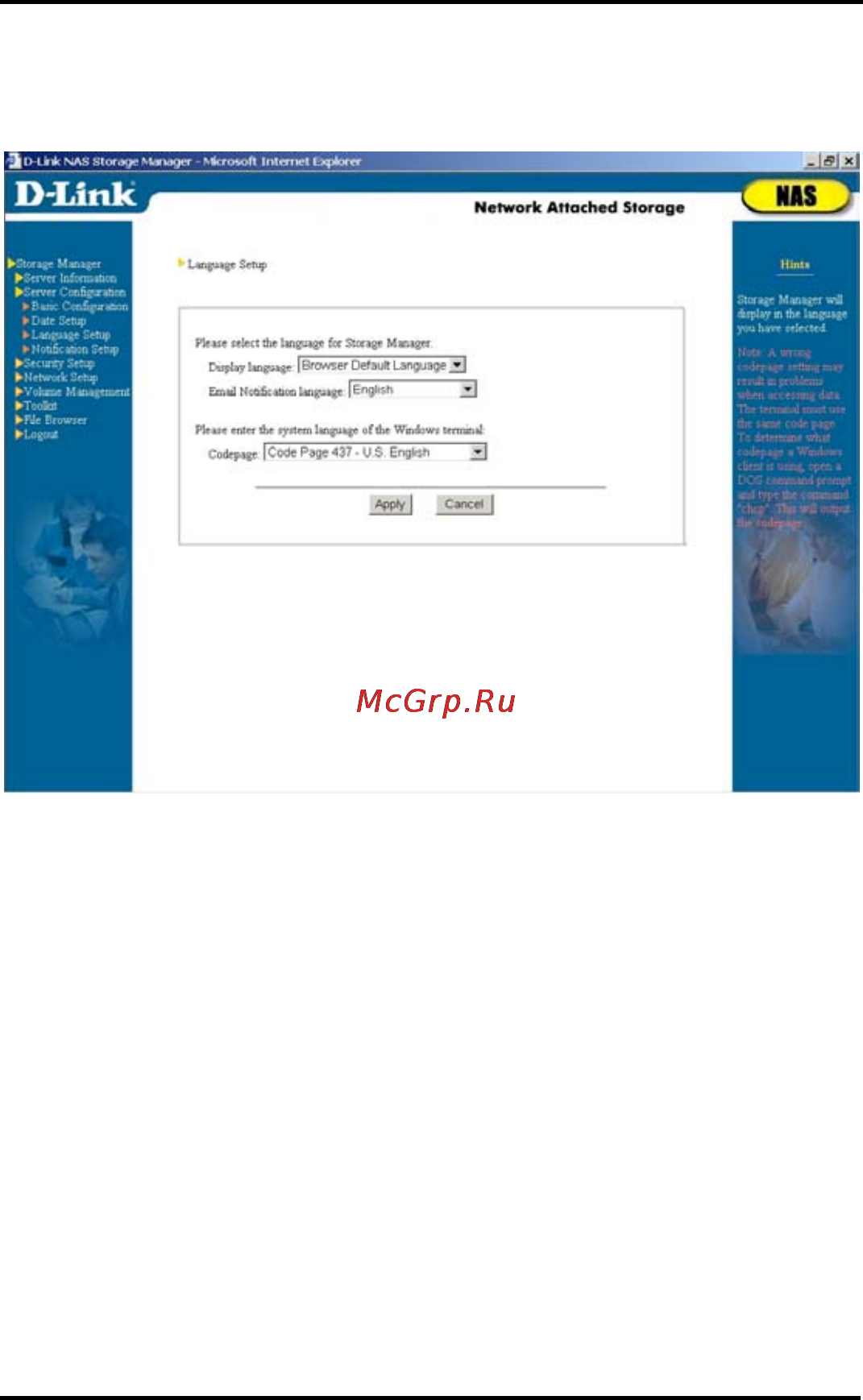

Select a language
Please choose a display language for
Storage Manager,
event notification emails, and the code page for Windows client
terminals. In Display Language column, when selecting
Browser Default Language, Storage Manager will
automatically display the same language as the IE browser of
the client when system administrator or general user is
connected to Storage Manager.
Once Quick Configuration is complete,
Storage Manager
will use that language. If you do not know the correct code page
of your Windows client, enter the command “chcp” in the DOS
Windows and press Enter to retrieve the correct code page
information.
Note: A wrong code page setting may result in problems when
accessing data. All terminals must use the same code page.
