DNS-6040M/DNS-6040 User’s Manual

on the LAN. Windows clients can also install this program on

the desktop, so that they can easily login to Storage Manager

to change personal information, and connect all privileged

shared folders on the NAS server as network drives.

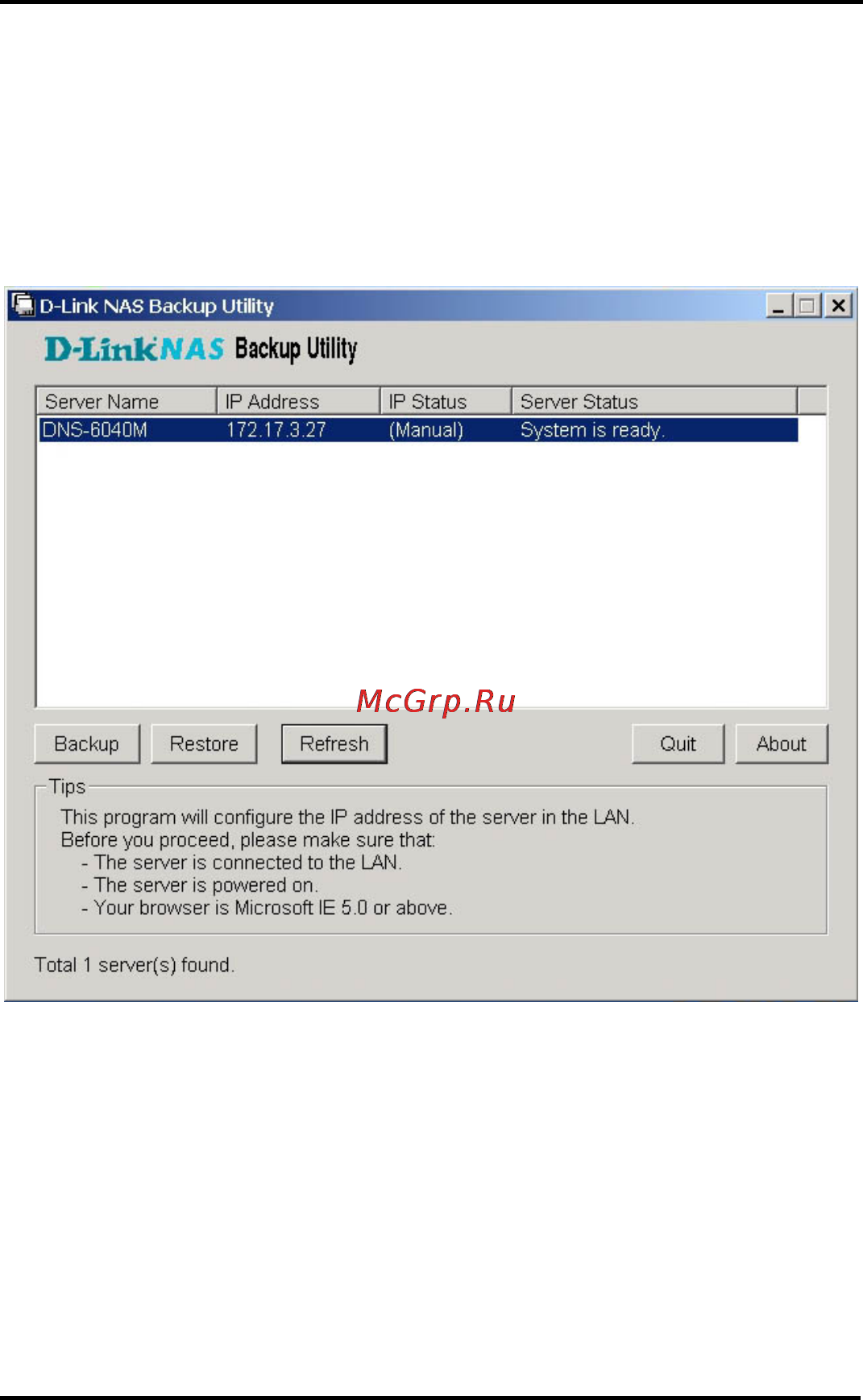

D-Link NAS Backup Utility

is specifically designed for

use by system administrator.

The system administrator can utilize this Windows-Based

backup program to backup data from the NAS server to other

storage devices on the LAN, or to restore data back onto the

NAS server.
