DNS-6040M/DNS-6040 User’s Manual

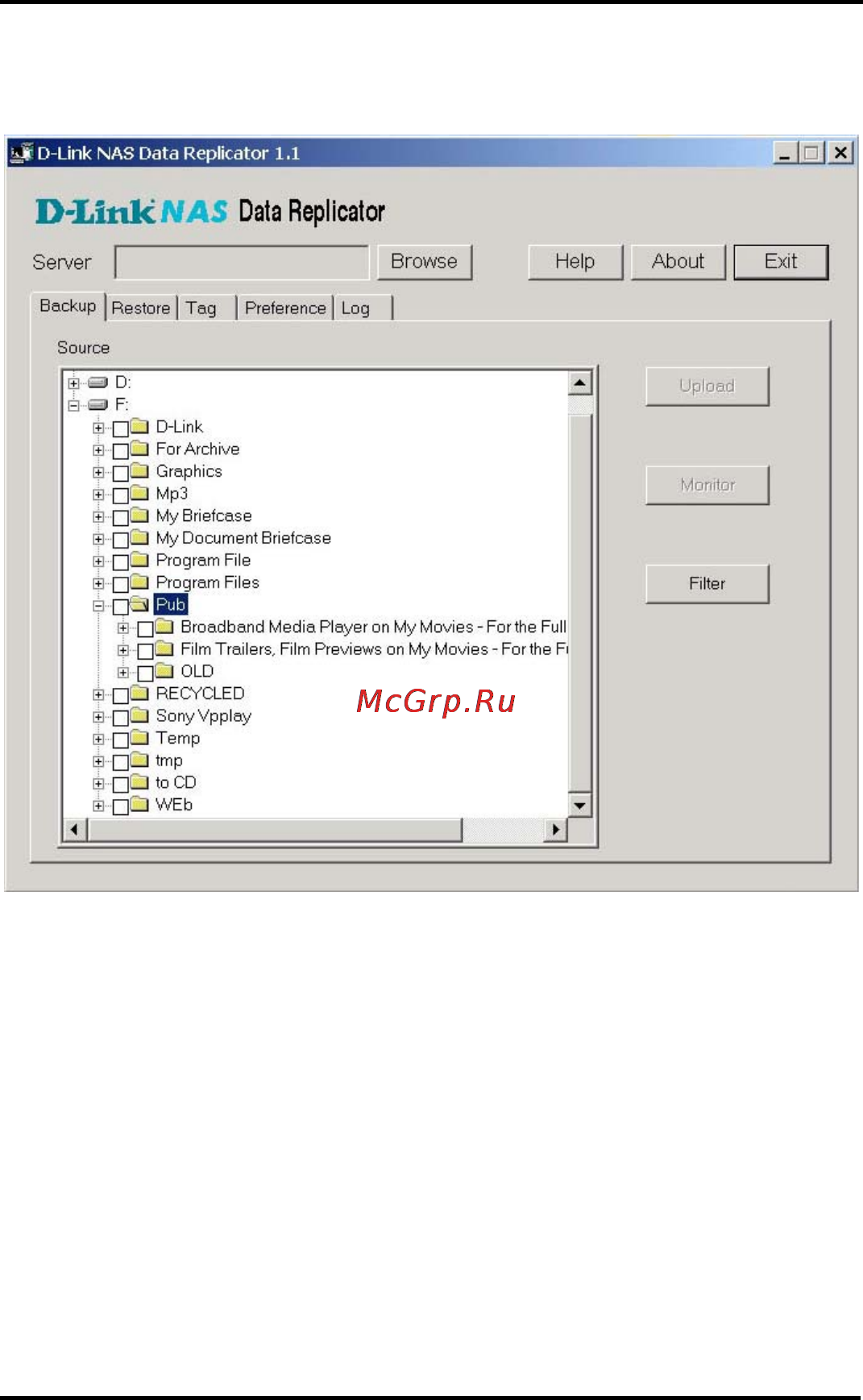

D-Link NAS Data Replicator

provides use for all

Windows clients on the LAN.

Windows clients can use D-Link NAS Data Replicator to

monitor file folders on computer, make immediate backup of

specified file folders to NAS server, making it easy for

restoration of backup files from server to client computers, files

backup, management and protection.
