DNS-6040M/DNS-6040 User’s Manual

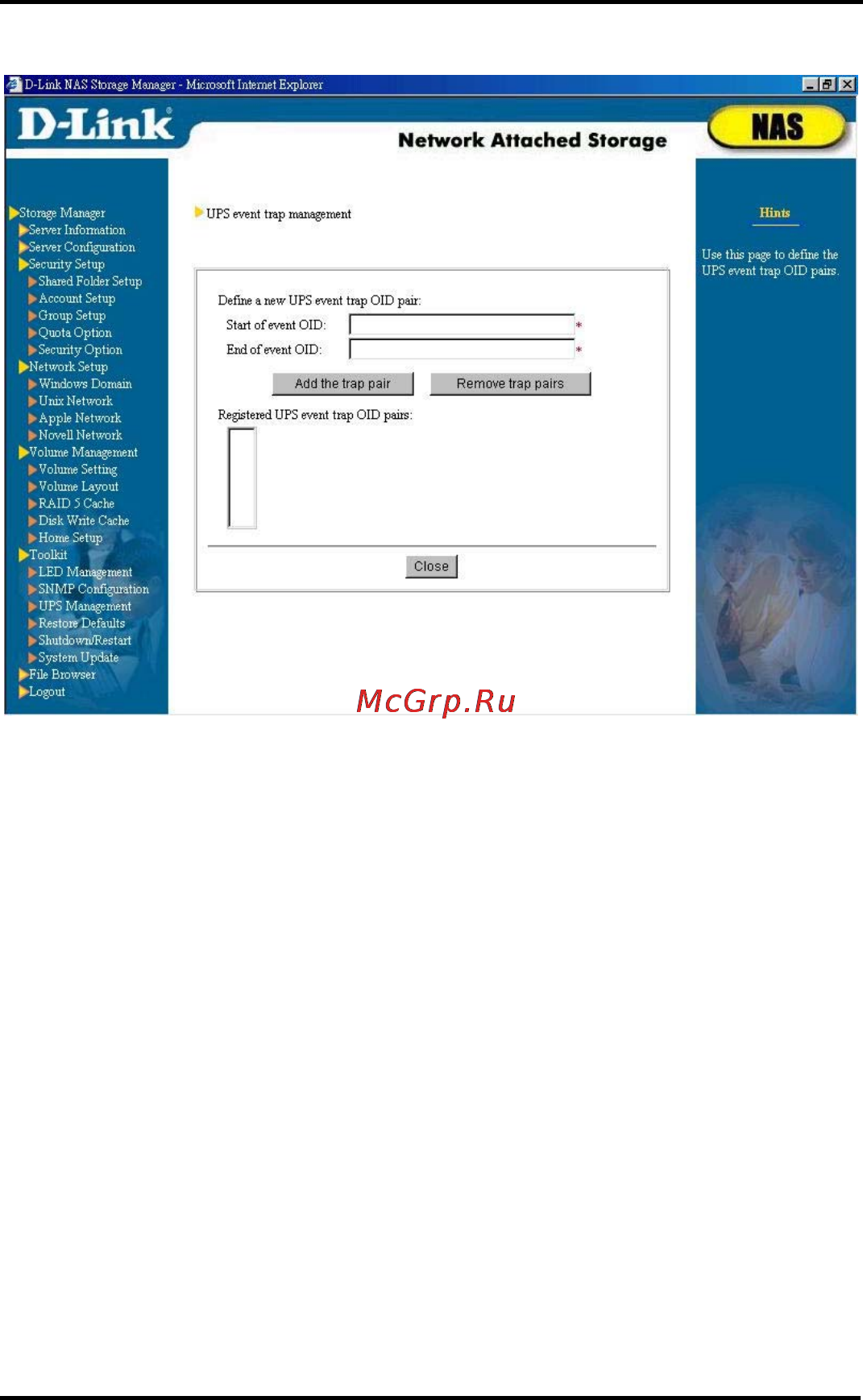

In Start of event OID, enter the critical event trap OID.

Alternatively, use an SNMP program such as HP OpenView to

browse through the MIB file and obtain the trap OID. The value

1.3.6.1.4.1.318.0.5 for example stands for A/C power failed,

switching to battery.

In the field End of event OID, enter the informational trap

OID, e.g. 1.3.6.1.4.1.318.0.9 for A/C power restored. This field

is optional, since many critical events do not permit resuming

and require a system shutdown. Retrieve both values for Start of

event OID and End of event OID for the MIB documentation of

your UPS manufacturer.
