DNS-6040M/DNS-6040 User’s Manual
31

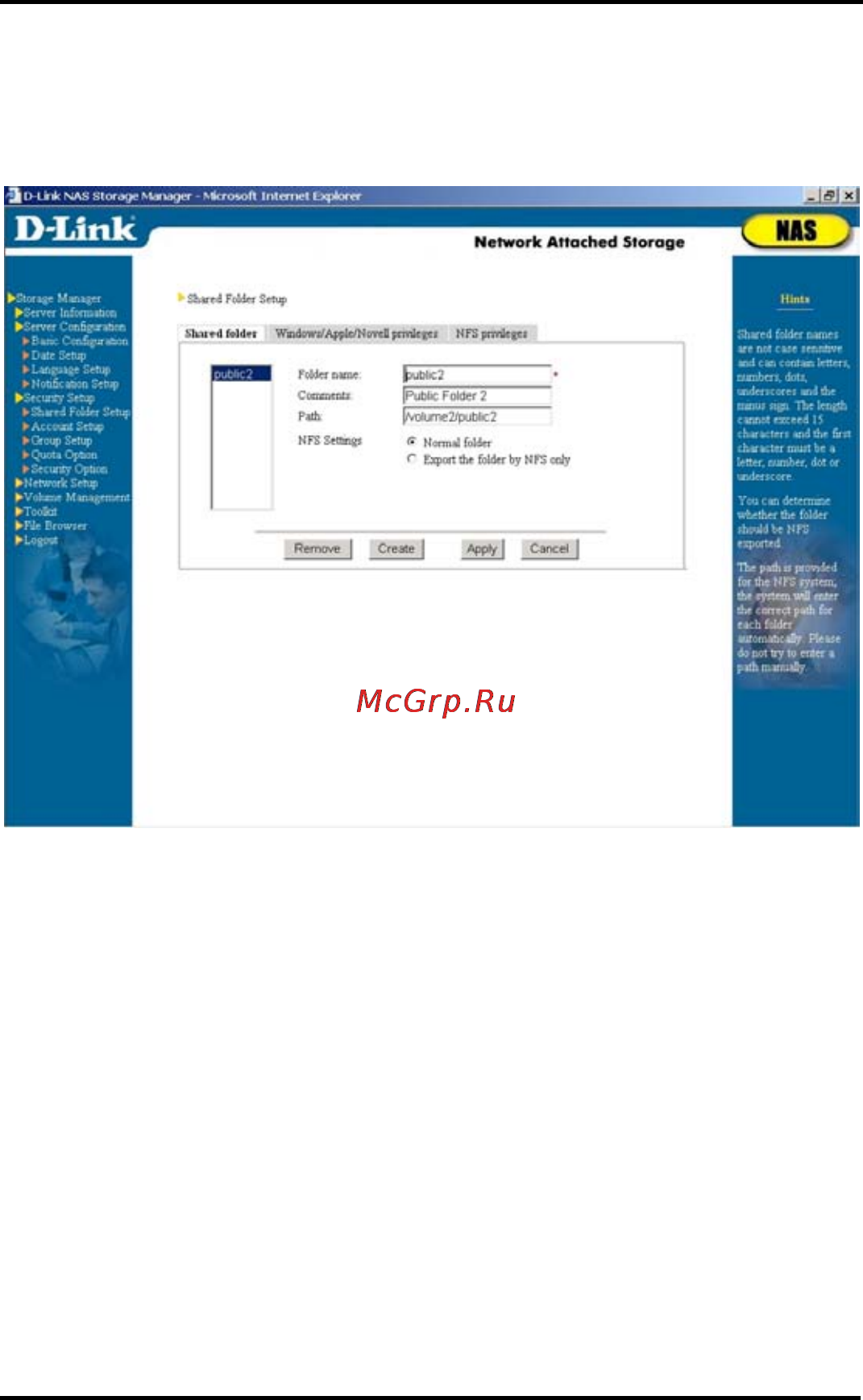

Shared Folder Setup
Shared Folder
Use this option to add, modify or delete shared folders. The
administrator can select whether folders can be exported via
NFS to allow UNIX access only.
The name of the shared folder cannot exceed 15 characters.
The name can be formed by double-byte character languages,
the same as the language of the Storage Manager interface,
such as Traditional Chinese or Simplified Chinese, etc.,
single-byte languages such as English, German, Spanish, etc.,
numbers, decimal point, underline and minus sign. The first
character however cannot be minus sign. The name is not case
sensitive.
Please note:
When naming a shared folder using language other than
English, please input the same language as the
Storage
