DNS-6040M/DNS-6040 User’s Manual

106

LAN, and create accounts for all users of D-Link NAS Data

Replicator on the server. Please note when setting up:

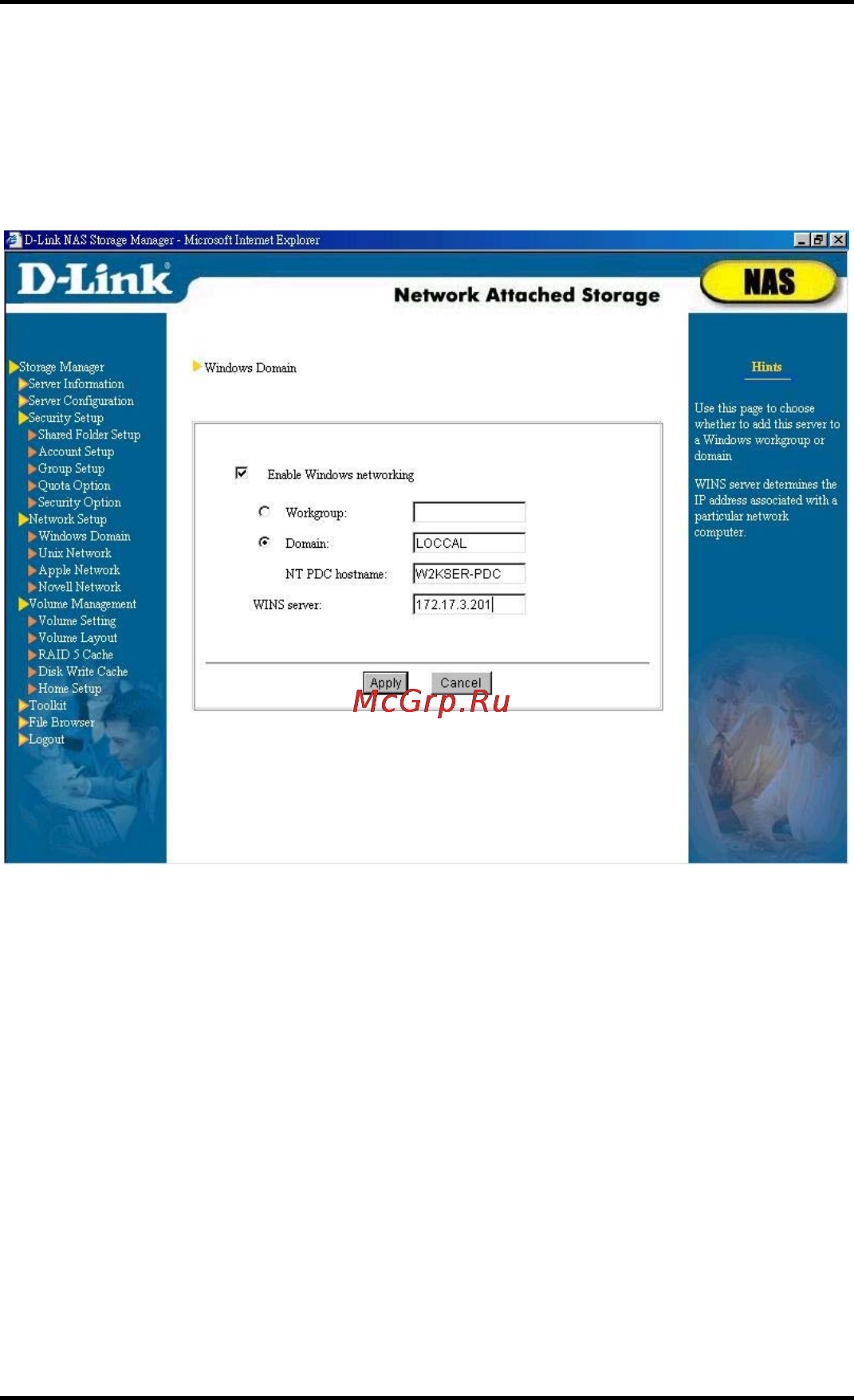

 Network Setup

Please Enable Windows networking in Network

Setup



Windows Domain of

Storage Manager
