DNS-6040M/DNS-6040 User’s Manual

120

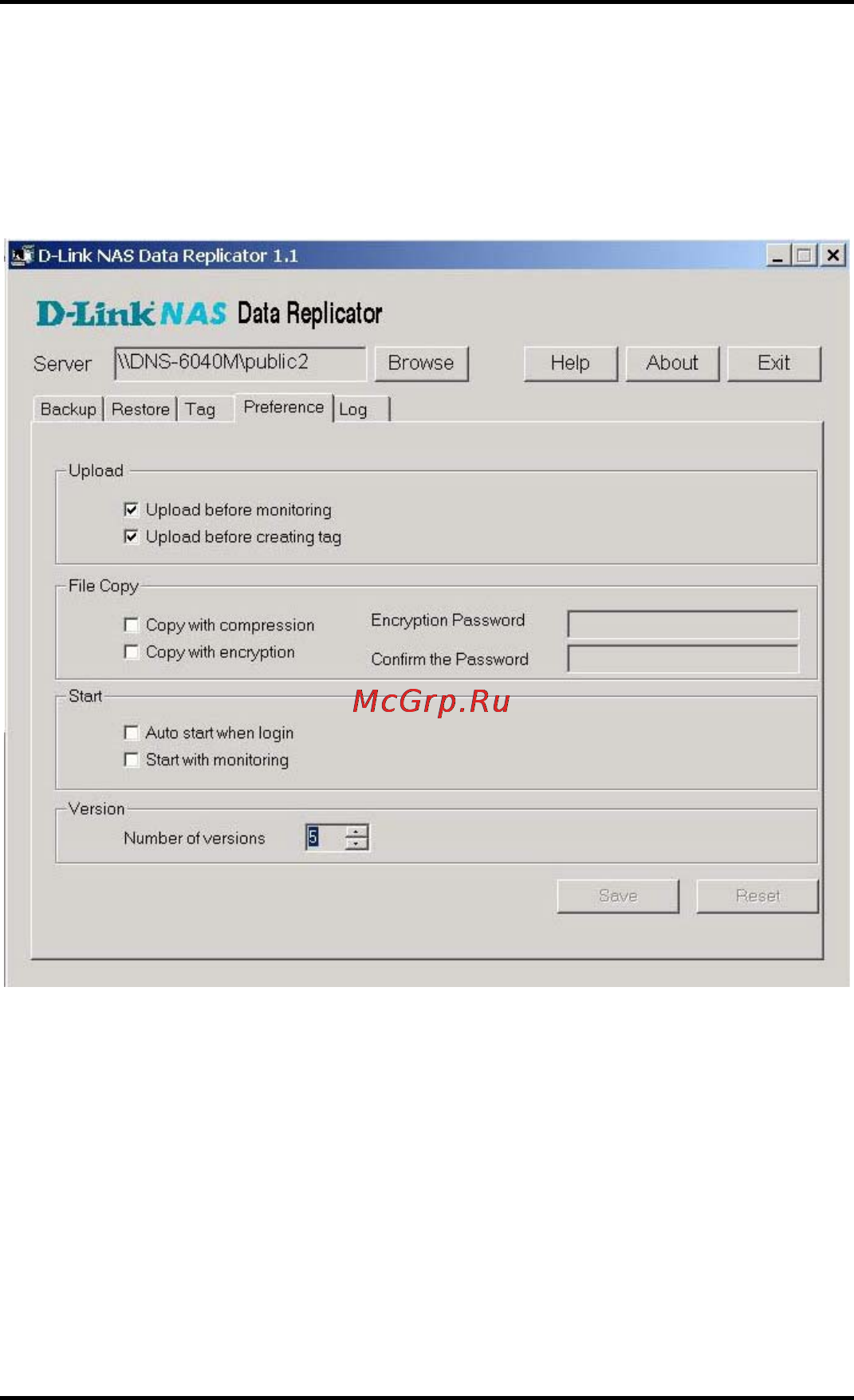

User Preferences

Upload



Upload before monitor.

When this option is clicked, each time Monitor is

executed, the system will check to see if there are files

which have not been backed up. If yes, it will

automatically upload these files. This is to prevent client

computer to change certain files when there is network

disconnect or if user did not run monitor immediately
