DNS-6040M/DNS-6040 User’s Manual
42

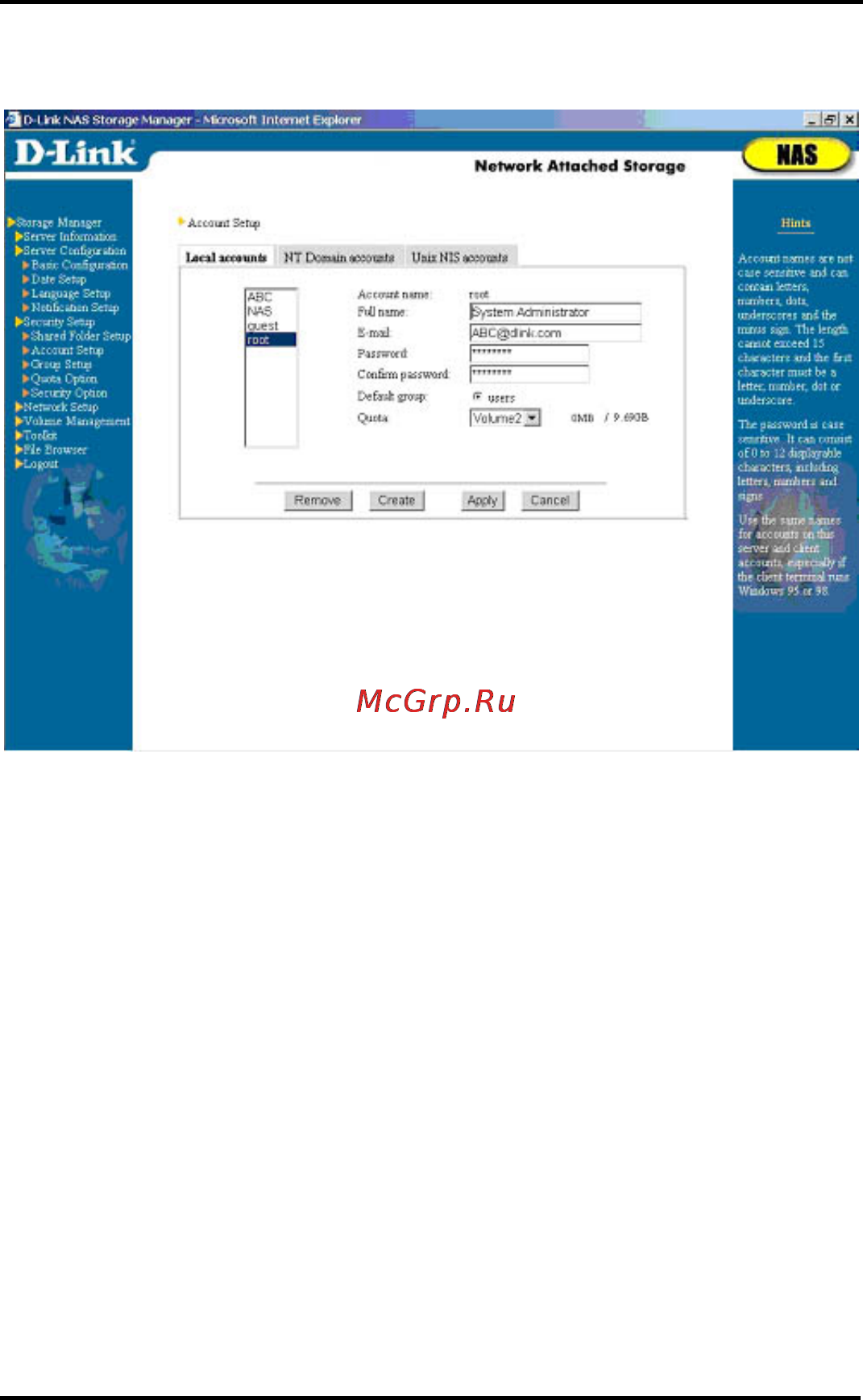

Local Accounts
The system administrator can setup accounts for Windows,
Apple and Novell users on the NAS server (the local machine).
When these clients attempt to access the NAS server, they only
need to enter their account name and password to gain access.
The system administrator can add, modify and delete user
accounts.
The name of an account cannot exceed 15 characters. The
name can be formed by double-byte character languages, the
same as the Storage Manager language, such as Traditional
Chinese, Simplified Chinese, Japanese or Korean, etc.,
single-byte languages such as English, German, Spanish, etc.,
numbers, decimal point, underline and minus sign. The first
character however cannot be minus sign. The name is not case
sensitive.
Please note:
When naming an account using other than English, please
