DNS-6040M/DNS-6040 User’s Manual
44
Adding user accounts

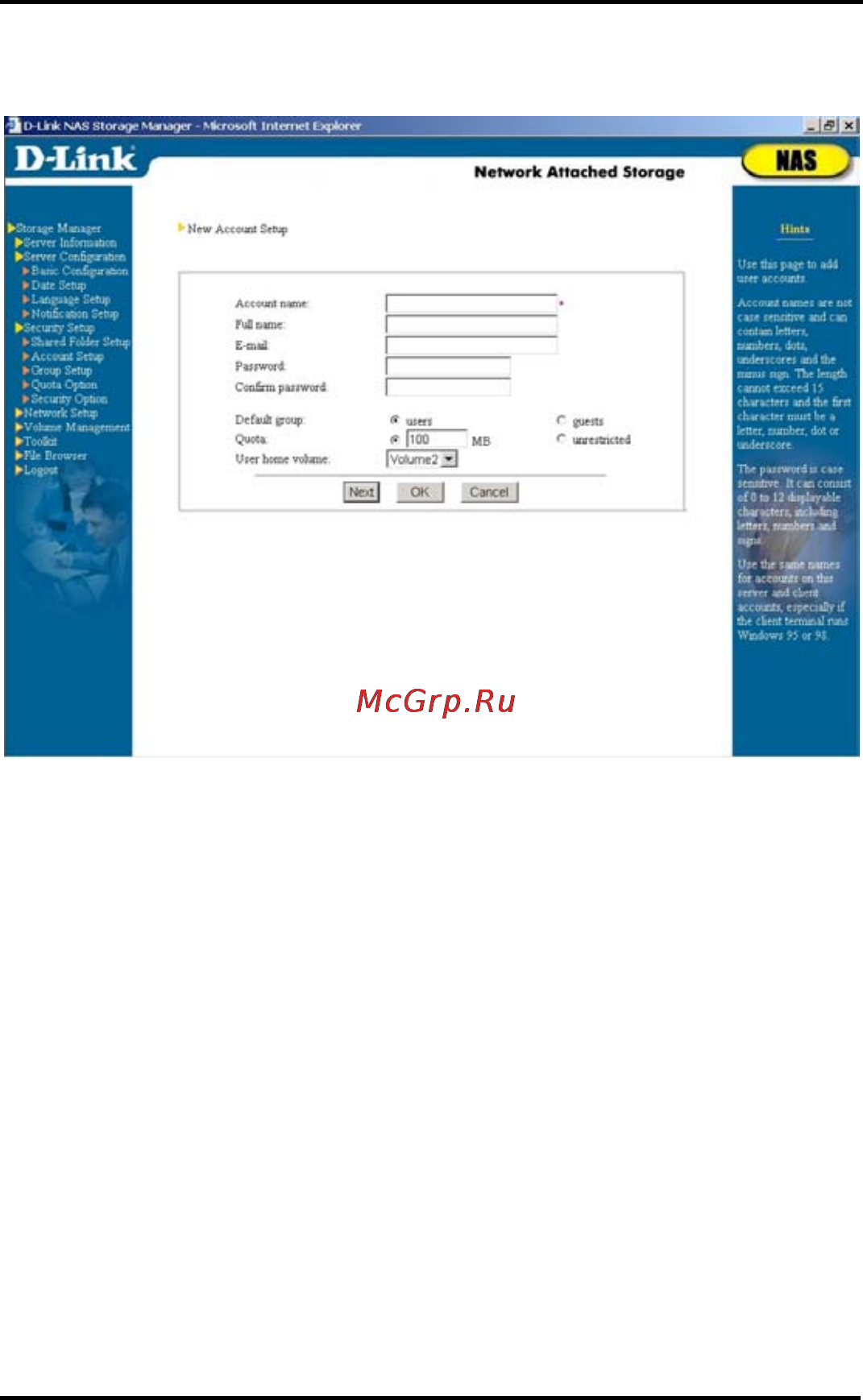

To add a new local user, click Create. The New Account Setup
dialog appears. Enter the account name, the full name of the user,
an e-mail address and a password. Under Default group, select
whether the user will receive his or her own home folder. If yes,
select the users group; if no, select guests.
After a new account has been created under users group, the
system will set up a home folder named “home” for this account.
Only the user can access his home folder. If a Windows client
accesses the NAS server through the Network Neighborhood, he
will see a folder named “home.” The user has full read and
write privileges to that folder. When the system has more than
one volume, system administrator must specify in which volume
to store the home folder of this account in the User home
volume. The default location can be setup in the Security
Option page. System administrator can also change it.
