DNS-6040M/DNS-6040 User’s Manual
68
Novell Network

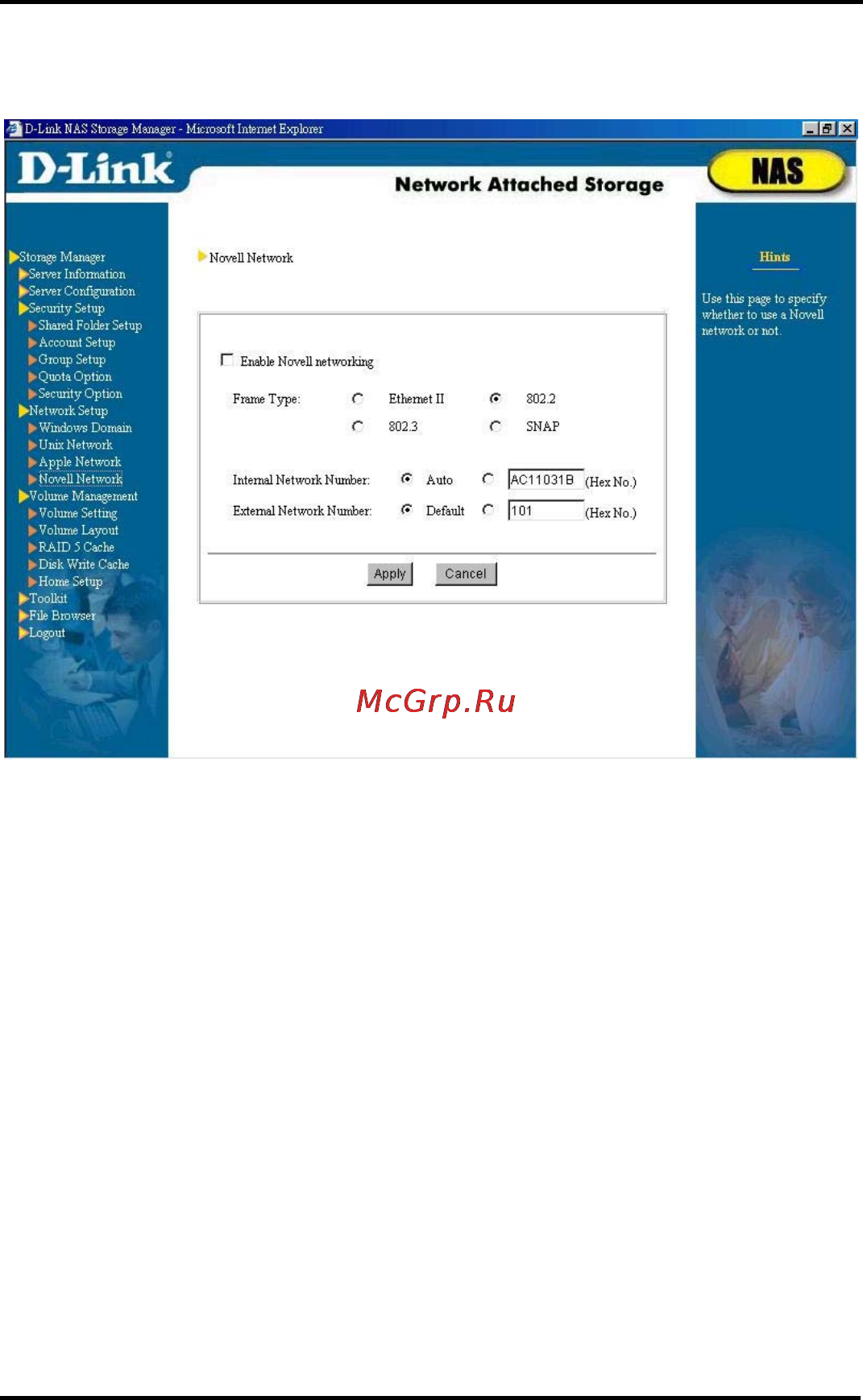

Use this page to specify whether to support a Novell
network or not. When there is more than one network card in
the NAS server and the server is set up as having multiple
subnets, this page will display multiple tabs such as Subnet 1,
Subnet 2, etc. allowing system administrator to setup Novell
environment within each subnet.
If you want to allow access by Novell clients, enter the
correct values for Frame Type and Network Number. The
Internal network number must be unique and should be set
automatically to avoid conflicts.
Note:
When selecting automatic configuration of the Internal Network
Number, make sure the server’s IP address is not in conflict with other
servers.
When adding the filer to the network where a Novell server is already
set up, you have to make sure the Novell server has the same External
