DNS-6040M/DNS-6040 User’s Manual
74
RAID 5 volume requires selection of at least three hard disks of
the same disk space.
RAID 5 with hot spare
In RAID 5 with hot spare volume type, a spare hard disk is
added to a RAID 5 volume. This volume type will use one
hard disk space to store redundancy and keep a disk as a spare.
Thus if n hard disk space is selected, the actual space available
is n-2 hard disk space. When any hard disk is malfunctioned,
the spare hard disk space will be on-line and replace the
malfunctioned disk automatically. This volume type can
provide timely data reconstruction better than RAID 5.

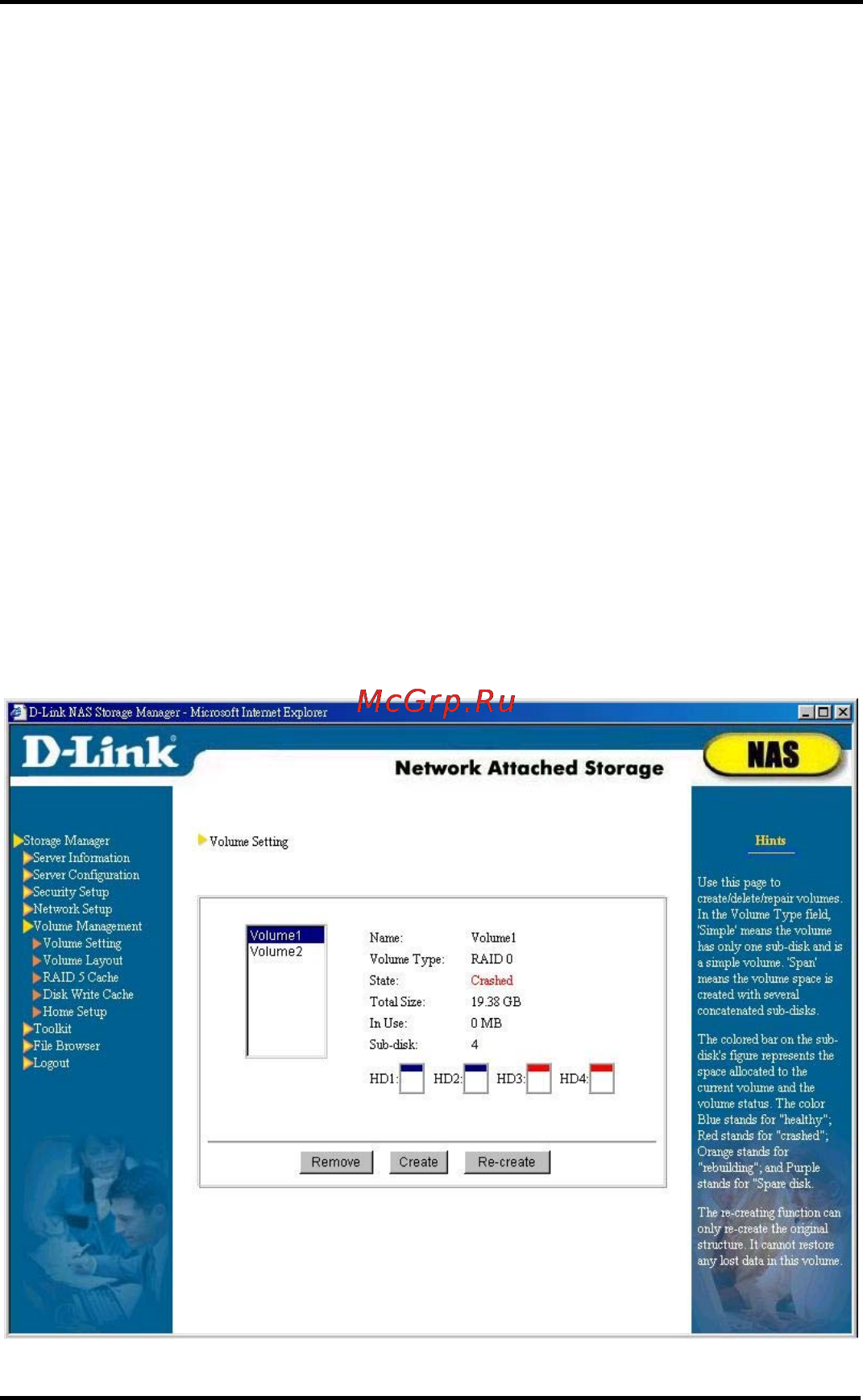

Remove volume
To remove a volume, please select the volume and click
Remove.
Re-create volume
